Technical Specifications
Onsemi BZX85C11 technical specifications.
General
| Package/Case | DO-41 |
| Contact Plating | Tin, Matte |
| Diameter | 2.72mm |
| ESD Protection | No |
| Impedance | 8R |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 500nA |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 11V |
| Voltage Tolerance | 5% |
| Weight | 0.245g |
| Zener Current | 20mA |
| Zener Voltage | 11V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BZX85C11 Datasheet
Download the complete datasheet for Onsemi BZX85C11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

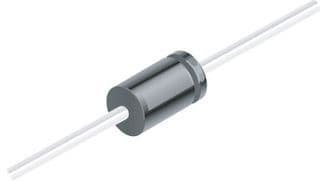

Product Images
