Onsemi
CAT24C16VP2I-GT3
16KX1 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, HALOGEN FREE AND ROHS COMPLIANT, MO-229, TDFN-8
Frequency400kHz
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT24C16VP2I-GT3 technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Contact Plating
Gold
Density
16Kb
Frequency
400kHz
Halogen Free
Halogen Free
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
2KX8
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Onsemi CAT24C16VP2I-GT3 Datasheet
Download the complete datasheet for Onsemi CAT24C16VP2I-GT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

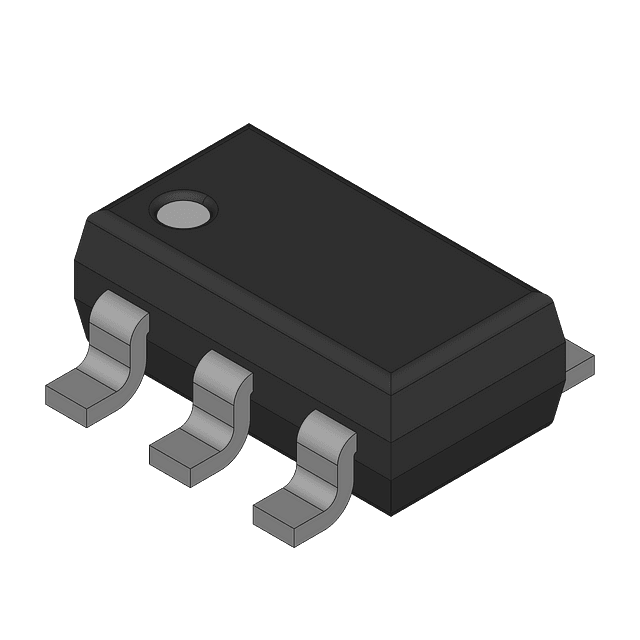

Product Images
