PackageSOT-23-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT803JTBI-T10 technical specifications.
General
Package/Case
SOT-23-3
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
4.06V
Min Reset Threshold Voltage
3.93V
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
20uA
Overvoltage Threshold
4.06V
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Undervoltage Threshold
3.93V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Onsemi CAT803JTBI-T10 Datasheet
Download the complete datasheet for Onsemi CAT803JTBI-T10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

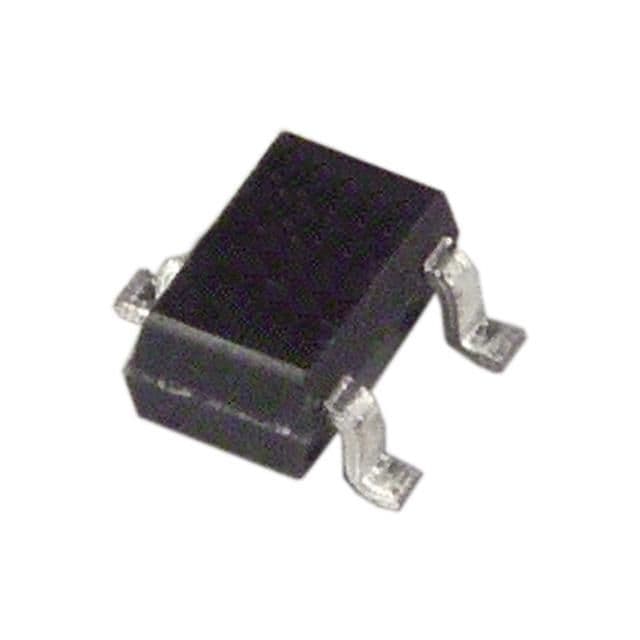

Product Images
