Surface mount voltage supervisor with active-low, open-drain reset output. Features a reset threshold voltage range of 2.89V to 2.96V, operating supply voltage from 1.2V to 5.5V, and a typical supply current of 15uA. This component offers a 140ms reset timeout and operates within a temperature range of -40°C to 85°C. Packaged in a 3-lead SC-70 package, it is RoHS and Halogen Free compliant.
PackageSC
Current15uA
MountingSurface Mount
Power175mW
Quick Jump:
Technical Specifications
Onsemi CAT803SSDI-GT3 technical specifications.
General
| Package/Case | SC |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 175mW |
| Max Reset Threshold Voltage | 2.96V |
| Min Reset Threshold Voltage | 2.89V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 15uA |
| Overvoltage Threshold | 2.96V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 175mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 15uA |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.89V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT803SSDI-GT3 Datasheet
Download the complete datasheet for Onsemi CAT803SSDI-GT3 to view detailed technical specifications.
No datasheet is available for this part.

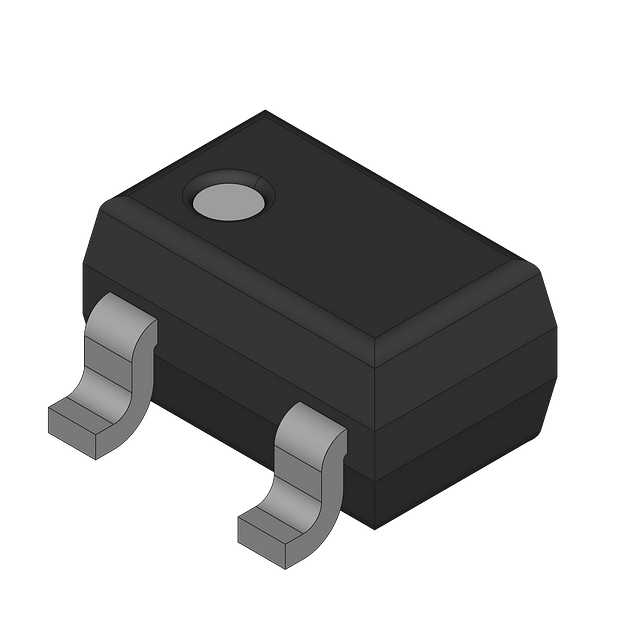

Product Images
