Package100
Capacitance15pF
Resistance100R
Quick Jump:
Technical Specifications
Onsemi CM1442-06CP technical specifications.
General
Attenuation Value
30dB
Capacitance
15pF
Package/Case
100
Circuit Type
Filter
Depth
1.05mm
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.72mm
Lead Free
Lead Free
Length
2.36mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Channels
6
Number of Elements
15
Number of Lines
6
Package Quantity
3500
Packaging
Tape and Reel
Resistance
100R
RoHS Compliant
Yes
Termination
Flat
Width
1.05mm
Compliance
RoHS
Compliant
Datasheet
Onsemi CM1442-06CP Datasheet
Download the complete datasheet for Onsemi CM1442-06CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

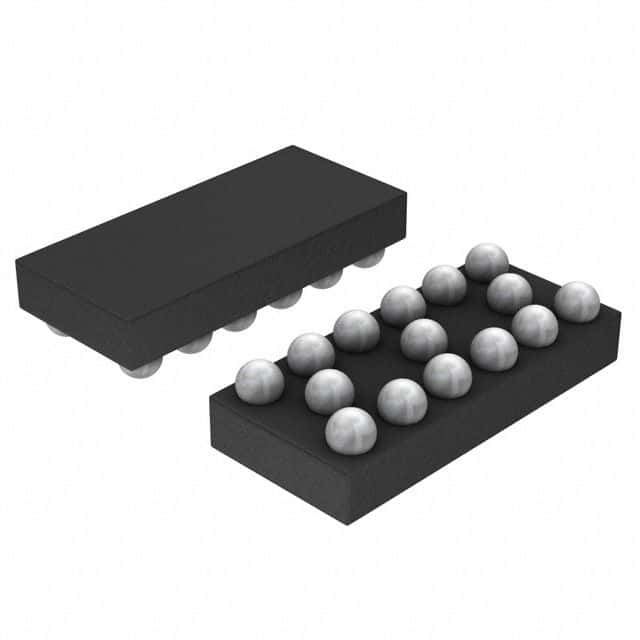

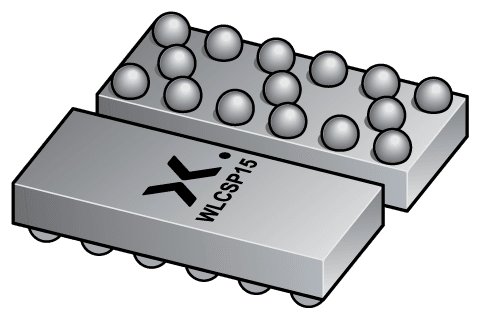

Product Images
