Onsemi

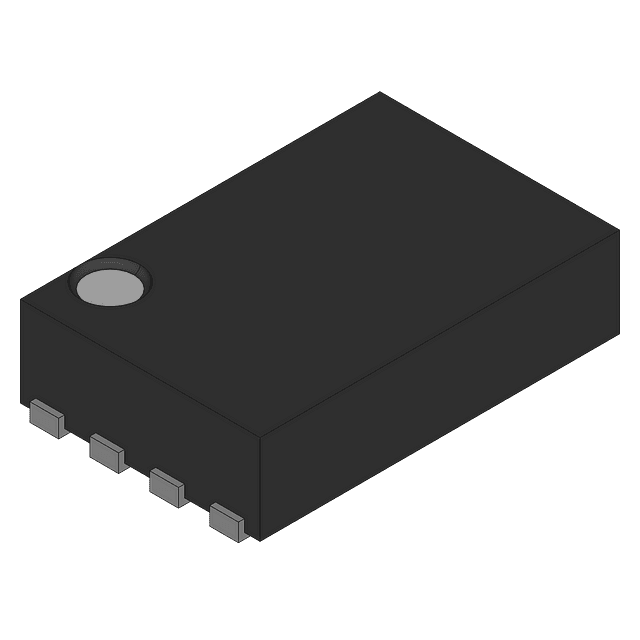

CM1631-04DE
4-, 6- and 8-Channel LCD and Camera EMI Filter Arrays with ESD Protection 4-Channel, UDFN8, 1.7x1.35, 0.4P, 3000-REEL
PackageSMD/SMT
Capacitance15pF
Resistance100R
Quick Jump:
Technical Specifications
Onsemi CM1631-04DE technical specifications.
General
Attenuation Value
30dB
Capacitance
15pF
Package/Case
SMD/SMT
Circuit Type
Filter
Depth
1.35mm
ESD Protection
Yes
Height
0.55mm
Lead Free
Lead Free
Length
1.7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Channels
4
Number of Elements
8
Package Quantity
3000
Packaging
Tape and Reel
Resistance
100R
RoHS Compliant
No
Termination
SMD/SMT
Width
1.35mm
Compliance
RoHS
Not Compliant
Datasheet
Onsemi CM1631-04DE Datasheet
Download the complete datasheet for Onsemi CM1631-04DE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
