The CPH5901G-TL-E is a NPN transistor with a collector base voltage rating of 55V and a collector emitter saturation voltage of 400uV. It has a maximum collector current of 150mA and a maximum frequency of 200MHz. The transistor is packaged in a SOT-23-5 package with a height of 0.9mm, length of 2.9mm, and width of 1.6mm. It is lead free and RoHS compliant, with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C.
Frequency200MHz
PackageSOT-23-5
Voltage Rating50V
PolarityNPN
Quick Jump:
Technical Specifications
Onsemi CPH5901G-TL-E technical specifications.
General
| Package/Case | SOT-23-5 |
| Collector Base Voltage (VCBO) | 55V |
| Collector Emitter Saturation Voltage | 400uV |
| Contact Plating | Tin, Matte |
| Emitter Base Voltage (VEBO) | 6V |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Collector Current | 150mA |
| Max Frequency | 200MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 350mW |
| RoHS Compliant | Yes |
| Voltage Rating | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CPH5901G-TL-E Datasheet
Download the complete datasheet for Onsemi CPH5901G-TL-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

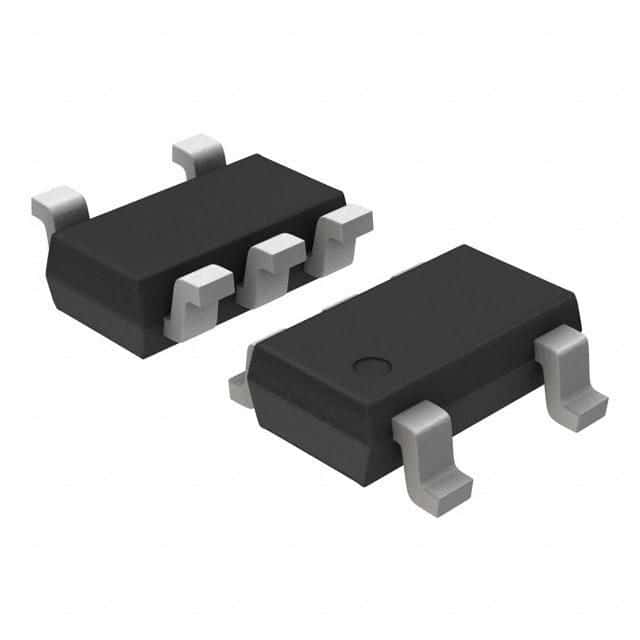

Product Images
