Onsemi
CS52015-1GSTR3
1.25 V-5.5V ADJUSTABLE POSITIVE LDO REGULATOR, 1.4V DROPOUT, PDSO4, SOT-223, 3 PIN
PackageTO-261-4
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CS52015-1GSTR3 technical specifications.
General
Package/Case
TO-261-4
Dropout Voltage
1.05V
Lead Free
Contains Lead
Min Current Limit
1.6A
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Number of Regulators
1
Output Current
1.5A
Output Voltage
5.5V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Onsemi CS52015-1GSTR3 Datasheet
Download the complete datasheet for Onsemi CS52015-1GSTR3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

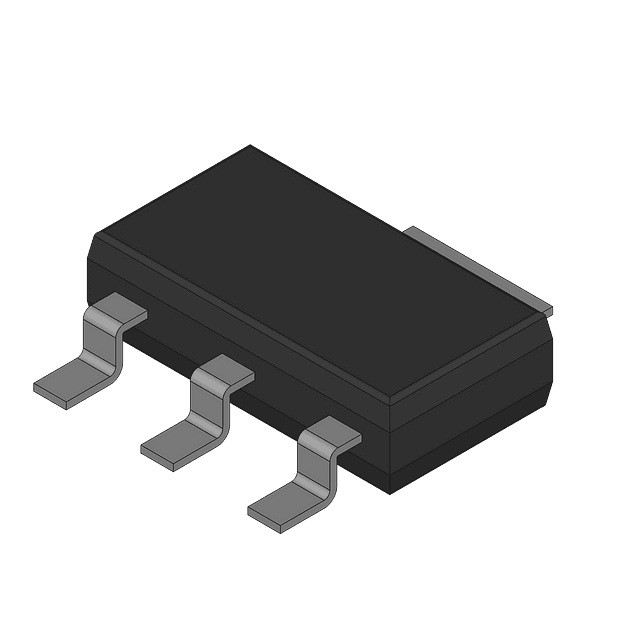

Product Images
