Single-phase bridge rectifier diode with 800V repetitive reverse voltage and 1.5A average rectified current. Features a 50A peak non-repetitive surge current and 3.1W maximum power dissipation. Operates across a temperature range of -55°C to 150°C. Packaged in a 4-pin SDIP (Small Outline Integrated Package) for through-hole mounting.
PackageSDIP
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi DF08S technical specifications.
General
Average Rectified Current
1.5A
Package/Case
SDIP
Current Rating
1.5A
Forward Current
1.5A
Height
3.3mm
Lead Free
Lead Free
Length
8.5mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.1W
Max Repetitive Reverse Voltage (Vrrm)
800V
Max Reverse Current
5uA
Max Surge Current
50A
Mount
Through Hole
Output Current
1.5A
Packaging
Cut Tape
Peak Non-Repetitive Surge Current
50A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage (DC)
560V
RoHS Compliant
Yes
DC Rated Voltage
800V
Weight
0.484g
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Onsemi DF08S Datasheet
Download the complete datasheet for Onsemi DF08S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

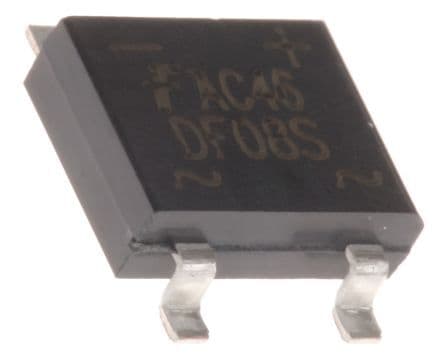

Product Images
