Dual unidirectional transient voltage suppressor (TVS) diode for ESD protection, featuring a 6.8V DC rated voltage and 5V reverse standoff voltage. This ZENER diode offers a 16V clamping voltage and a minimum breakdown voltage of 6.4V, capable of handling a peak pulse current of 9.37A and 150W peak pulse power. Designed for surface-mount applications, it operates across a temperature range of -55°C to 150°C and is supplied in a 3000-piece tape and reel package.
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi DF3A6.8FUT1 technical specifications.
General
Clamping Voltage
16V
Diode Type
ZENER
Direction
Unidirectional
Height
1mm
Lead Free
Contains Lead
Length
2.2mm
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
9.37A
Number of Channels
2
Number of Lines
2
Number of Unidirectional Channels
2
Operating Supply Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
9.37A
Peak Pulse Power
150W
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
5V
RoHS Compliant
No
Termination
SMD/SMT
DC Rated Voltage
6.8V
Width
1.35mm
Compliance
RoHS
Not Compliant
Datasheet
Onsemi DF3A6.8FUT1 Datasheet
Download the complete datasheet for Onsemi DF3A6.8FUT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

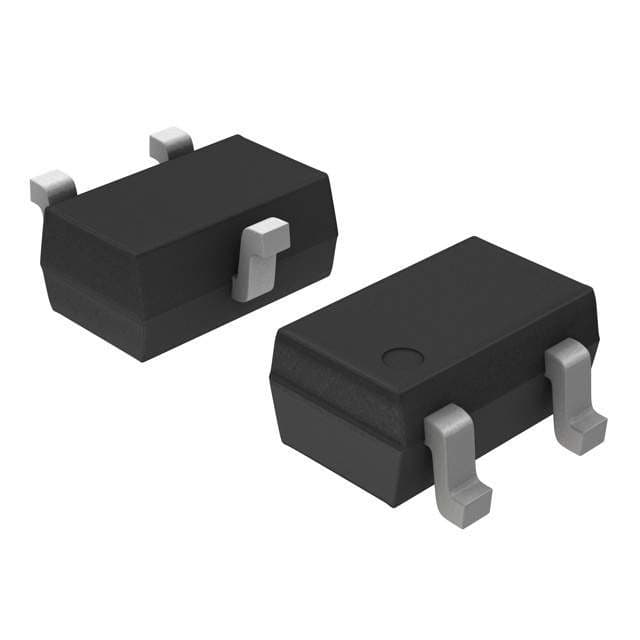

Product Images
