Technical Specifications
Onsemi DM7407N technical specifications.
General
| Package/Case | DIP |
| High Level Output Current | 21mA |
| Lead Free | Contains Lead |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 40mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Bits | 6 |
| Number of Bits per Element | 1 |
| Number of Elements | 6 |
| Number of Input Lines | 6 |
| Number of Output Lines | 6 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 30ns |
| RoHS Compliant | No |
| Series | 7400 |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi DM7407N Datasheet
Download the complete datasheet for Onsemi DM7407N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

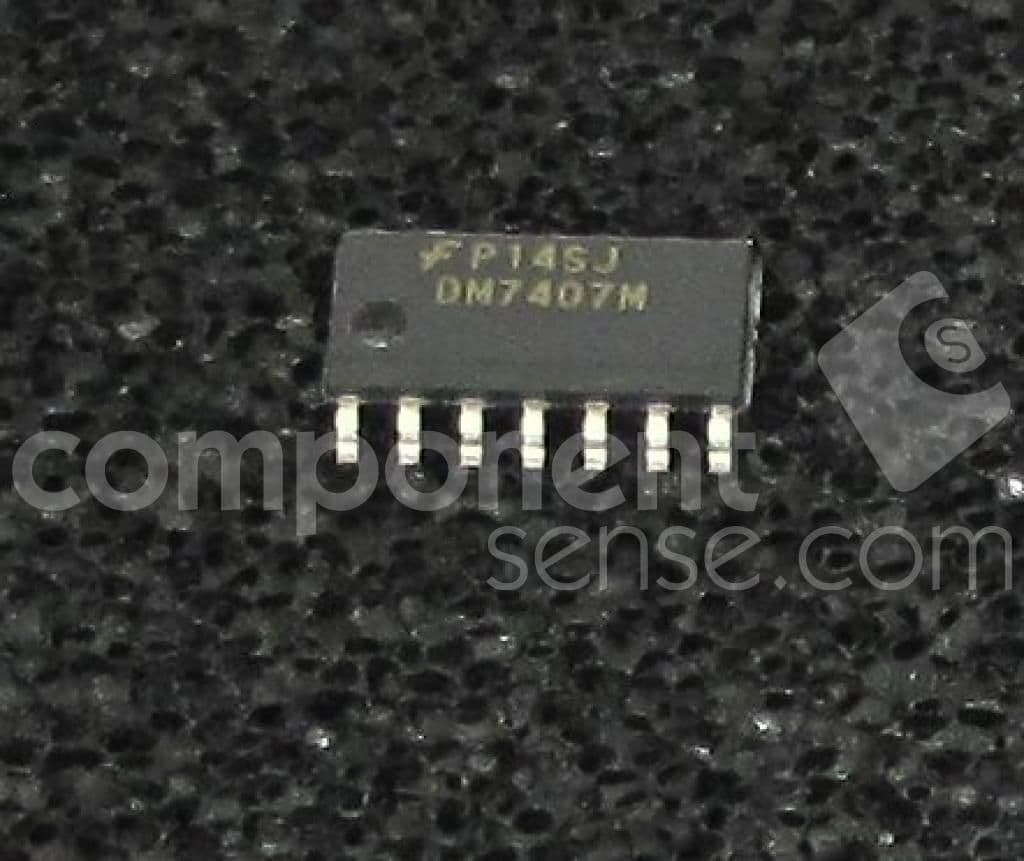

Product Images
