8-bit D-type flip-flop latch with 3-state outputs, operating at up to 35MHz. Features positive edge clock triggering, a 5V operating supply voltage, and a 16ns propagation delay. This through-hole component offers 24mA low-level output current and -2.6mA high-level output current, with a 0°C to 70°C operating temperature range. RoHS compliant and lead-free.
Frequency35MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi DM74ALS374N technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Positive Edge
Frequency
35MHz
High Level Output Current
-2.6mA
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Logic Function
D-Type, Flip-Flop
Low Level Output Current
24mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
3
Number of Output Lines
3
Operating Supply Voltage
5V
Output Current
24mA
Output Type
3-STATE
Package Quantity
18
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
16ns
Quiescent Current
19mA
RoHS Compliant
Yes
Series
74ALS
Technology
BIPOLAR
Turn-On Delay Time
18ns
Compliance
RoHS
Compliant
Datasheet
Onsemi DM74ALS374N Datasheet
Download the complete datasheet for Onsemi DM74ALS374N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

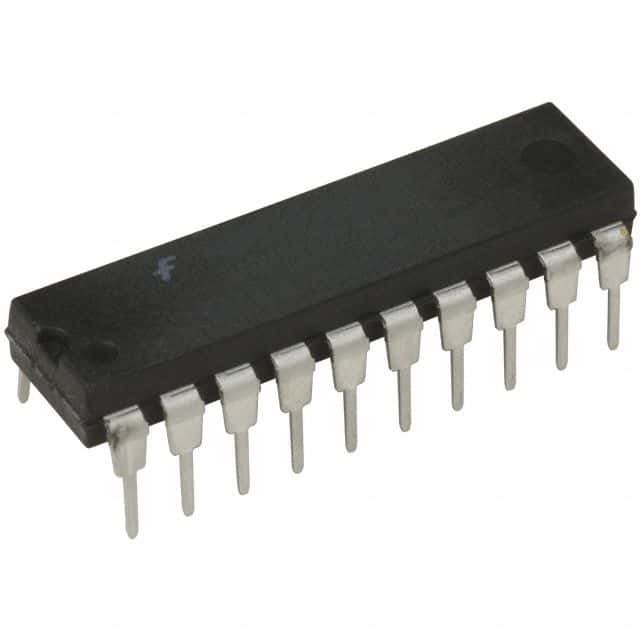

Product Images
