8-bit, 3-state, inverting transceiver logic IC with 24mA output current. Features a 5V operating supply voltage, 10ns propagation delay, and operates within a 0°C to 70°C temperature range. Through-hole mountable in a PDIP package, this RoHS compliant component offers 8 channels and is constructed with BIPOLAR technology.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi DM74ALS645AN technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | 24mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 24mA |
| Output Type | 3-STATE |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 10ns |
| Quiescent Current | 36mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74ALS |
| Technology | BIPOLAR |
| Turn-On Delay Time | 20ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi DM74ALS645AN Datasheet
Download the complete datasheet for Onsemi DM74ALS645AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

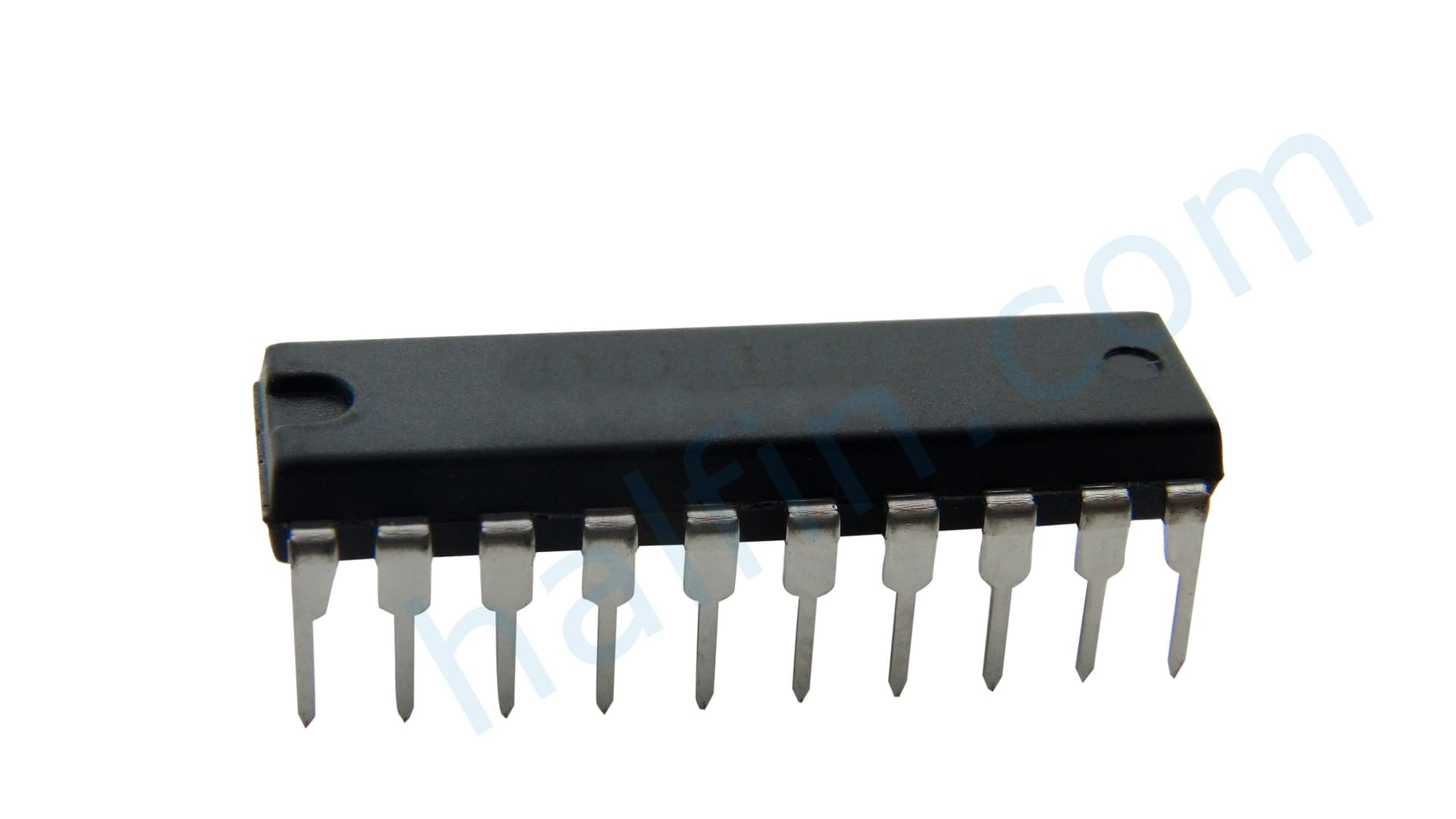

Product Images
