N-Channel Power MOSFET featuring 30V drain-source voltage and 12A continuous drain current. Achieves low 10mΩ drain-to-source resistance. Operates with a 20V gate-source voltage and offers fast switching with a 17ns turn-on delay and 72ns fall time. Packaged in a compact SOT-28FL / ECH8 (2.9mm x 2.3mm x 0.9mm) with 3000 units per tape and reel. This RoHS and Halogen Free component is designed for efficient power management.
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi ECH8410-TL-H technical specifications.
General
Continuous Drain Current (ID)
12A
Drain to Source Resistance
10mR
Drain to Source Voltage (Vdss)
30V
Element Configuration
Single
Fall Time
72ns
Gate to Source Voltage (Vgs)
20V
Halogen Free
Halogen Free
Height
0.9mm
Input Capacitance
1.7nF
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Number of Channels
2
Package Quantity
3000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Radiation Hardening
No
Rds On Max
10mR
RoHS Compliant
Yes
Turn-Off Delay Time
110ns
Turn-On Delay Time
17ns
Width
2.3mm
Compliance
RoHS
Compliant
Datasheet
Onsemi ECH8410-TL-H Datasheet
Download the complete datasheet for Onsemi ECH8410-TL-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

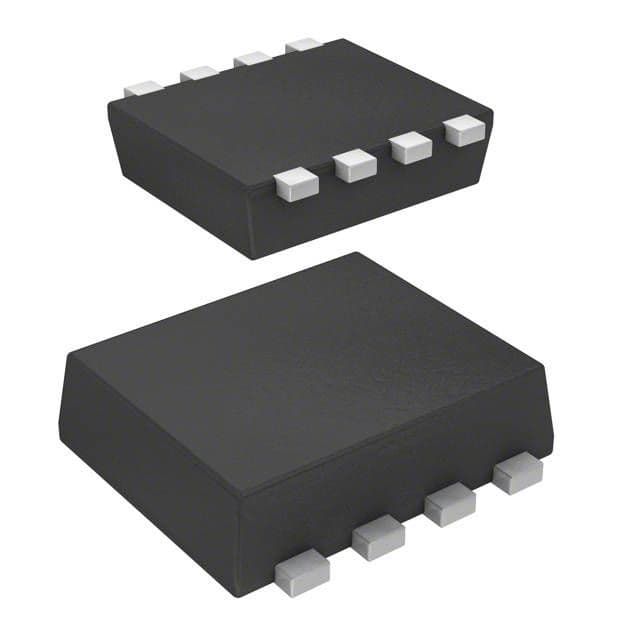

Product Images
