Unidirectional transient voltage suppressor (TVS) diode with a 3.3V working voltage, designed for ESD protection. Features a low capacitance of 105pF and a clamping voltage of 14.1V. Housed in a compact SOD-523-2 package with SMD/SMT termination, this device offers a maximum power dissipation of 240W and peak pulse power of 158W. It operates within a temperature range of -55°C to 150°C and is RoHS compliant.
PackageSOD-523-2
Capacitance105pF
Voltage Rating3.3V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi ESD5Z3.3T1G technical specifications.
General
Capacitance
105pF
Package/Case
SOD-523-2
Clamping Voltage
14.1V
Clamping Voltage-Max
14.1V
Depth
0.8mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.6mm
Lead Free
Lead Free
Leakage Current
50nA
Length
1.2mm
Max Breakdown Voltage
5V
Min Breakdown Voltage
5V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
240W
Max Reverse Leakage Current
50nA
Max Surge Current
11.2A
Number of Channels
1
Number of Elements
1
Number of Lines
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
11.2A
Peak Pulse Power
158W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Termination
SMD/SMT
Width
0.8mm
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Onsemi ESD5Z3.3T1G Datasheet
Download the complete datasheet for Onsemi ESD5Z3.3T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

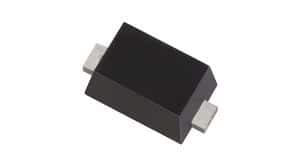

Product Images
