Unidirectional ESD protection diode with a 7V working voltage and 7.5V reverse breakdown voltage. Features a low 65pF capacitance and 10nA leakage current. Designed for transient voltage suppression with a 22.7V clamping voltage and 240W power dissipation. Packaged in a compact SOD-523-2 surface-mount case, supplied on a 3000-piece tape and reel.
PackageSOD-523-2
Capacitance65pF
Voltage Rating7V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi ESD5Z7.0T1G technical specifications.
General
Capacitance
65pF
Package/Case
SOD-523-2
Clamping Voltage
22.7V
Clamping Voltage-Max
22.7V
Depth
0.8mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.7mm
Lead Free
Lead Free
Leakage Current
10nA
Length
1.2mm
Max Breakdown Voltage
7.5V
Min Breakdown Voltage
7.5V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
240W
Max Reverse Leakage Current
10nA
Max Surge Current
8.8A
Number of Channels
1
Number of Elements
1
Number of Lines
1
Number of Unidirectional Channels
1
Operating Supply Voltage
7V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
8.8A
Peak Pulse Power
200W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
7.5V
Reverse Standoff Voltage
7V
RoHS Compliant
Yes
Termination
SMD/SMT
Width
0.9mm
Working Voltage
7V
Compliance
RoHS
Compliant
Datasheet
Onsemi ESD5Z7.0T1G Datasheet
Download the complete datasheet for Onsemi ESD5Z7.0T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

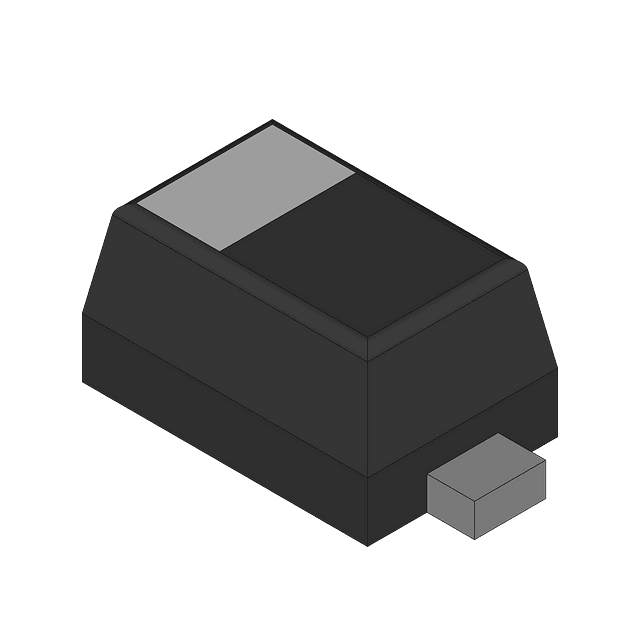

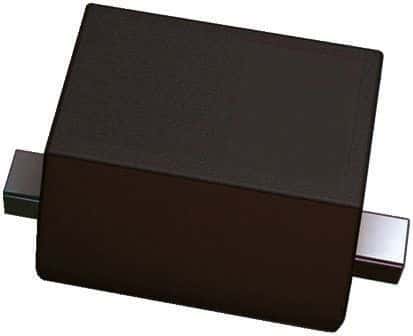

Product Images
