Unidirectional ESD suppressor diode with a 3.3V working voltage, designed for transient voltage suppression. Features a low capacitance of 0.9pF and a clamping voltage of 7.8V (max 9V). Operating temperature range from -55°C to 125°C, with a maximum power dissipation of 150mW and a peak pulse current of 1A. Packaged in a compact SOD-923-2 (SMD/SMT) case, supplied on tape and reel.
PackageSOD-923-2
Capacitance0.9pF
Voltage Rating3.3V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi ESD9L3.3ST5G technical specifications.
General
Capacitance
0.9pF
Package/Case
SOD-923-2
Clamping Voltage
7.8V
Clamping Voltage-Max
9V
Depth
0.6mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.016inch
Lead Free
Lead Free
Leakage Current
1uA
Length
0.8mm
Max Breakdown Voltage
4.8V
Min Breakdown Voltage
4.8V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
150mW
Max Reverse Leakage Current
1uA
Max Surge Current
1A
Number of Channels
1
Number of Elements
1
Number of Lines
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.3V
Package Quantity
8000
Packaging
Tape and Reel
Peak Pulse Current
1A
Peak Pulse Power
150mW
Polarity
Unidirectional
Power Dissipation
150W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
4.8V
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Termination
SMD/SMT
Width
0.026inch
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Onsemi ESD9L3.3ST5G Datasheet
Download the complete datasheet for Onsemi ESD9L3.3ST5G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

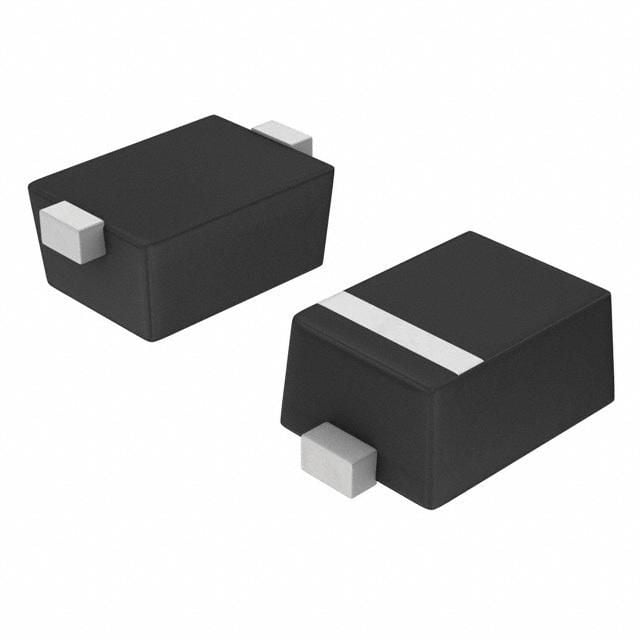

Product Images
