Onsemi
ESDR0544MDMR4G
ESD Protection Diode, Ultra Low Capacitance, Low Clamping Voltage Four channel flow-through ESD protection, C/O FOR MICRO 10 PKG, 1000-REEL
Capacitance0.9pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi ESDR0544MDMR4G technical specifications.
General
| Capacitance | 0.9pF |
| Depth | 3.1mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 3.1mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi ESDR0544MDMR4G Datasheet
Download the complete datasheet for Onsemi ESDR0544MDMR4G to view detailed technical specifications.
No datasheet is available for this part.

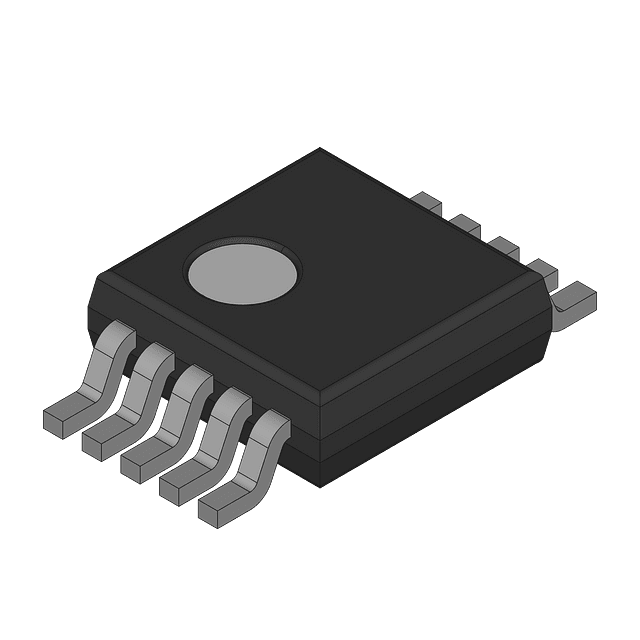

Product Images
