Dual low-side gate driver IC with 3A peak sink and 3A source current capability. Features CMOS input and dual non-inverting outputs, operating from a 4.5V to 18V supply range with a typical 12V operating voltage. Delivers 30ns propagation delay and 17ns fall time. Packaged in a surface-mount SOIC case, this RoHS compliant component operates from -40°C to 125°C.
PackageSOIC
Current650uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FAN3227CMX technical specifications.
General
Package/Case
SOIC
Fall Time
17ns
Height
1.575mm
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Power Dissipation
460mW
Max Supply Current
1.05mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
2
Number of Outputs
2
Operating Supply Voltage
12V
Output Current
3A
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
30ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
650uA
Turn-On Delay Time
30ns
Weight
0.2304g
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FAN3227CMX Datasheet
Download the complete datasheet for Onsemi FAN3227CMX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

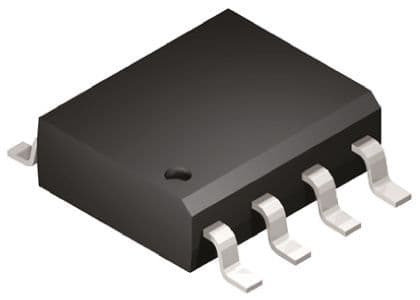

Product Images
