ONSEMI

FDC6325L

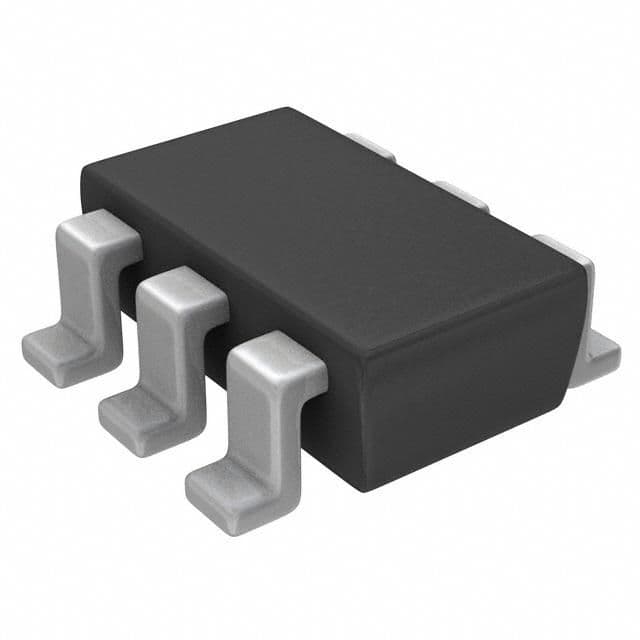

1.8A Power Switch, 8V, 130mR, 1-OUT, SOT-23-6

Onsemi

FDC6325L

Name: FDC6325L Onsemi
Brand: Onsemi
SKU: FDC6325L

1.8A Power Switch, 8V, 130mR, 1-OUT, SOT-23-6

Surface mount power switch with 1.8A continuous drain current and 8V drain-to-source voltage. Features 130mΩ on-state resistance and a 1A output current capability. Operates from 2.5V to 8V input voltage with a maximum power dissipation of 700mW. This RoHS compliant component is housed in a 6-pin TSOT-23 package.

PackageSOT-23-6

Voltage8V

Current1.8A

MountingSurface Mount

Quick Jump:

Technical Specifications

Onsemi FDC6325L technical specifications.

General

Package/Case	SOT-23-6
Continuous Drain Current (ID)	1.8A
Current	1.8A
Drain to Source Resistance	130mR
Drain to Source Voltage (Vdss)	8V
Height	1mm
Interface	On/Off
Lead Free	Lead Free
Length	3mm
Max Input Voltage	8V
Min Input Voltage	2.5V
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Output Current	1.8A
Max Power Dissipation	700mW
Max Supply Voltage	8V
Min Supply Voltage	2.5V
Mount	Surface Mount
Number of Outputs	1
Number of Switches	1
On-State Resistance	130mR
On-state Resistance-Max	160mR
Output Configuration	High Side
Output Current	1A
Package Quantity	3000
Packaging	Tape and Reel
Power Dissipation	700mW
Radiation Hardening	No
Rated Current-Max	1.8A
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	FDC6325L
Voltage	8V
DC Rated Voltage	8V
Weight	0.036g
Width	1.7mm
