Technical Specifications
Onsemi FDC6432SH technical specifications.
General
| Package/Case | SOT-23-6 |
| Continuous Drain Current (ID) | 2.5A |
| Current Rating | 2.4A |
| Drain to Source Breakdown Voltage | -12V |
| Drain to Source Resistance | 90mR |
| Drain to Source Voltage (Vdss) | 12V |
| Fall Time | 12ns |
| FET Type | N and P-Channel |
| Gate to Source Voltage (Vgs) | 8V |
| Input Capacitance | 270pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 700mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 1.3W |
| Rds On Max | 90mR |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Turn-Off Delay Time | 22ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDC6432SH Datasheet
Download the complete datasheet for Onsemi FDC6432SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

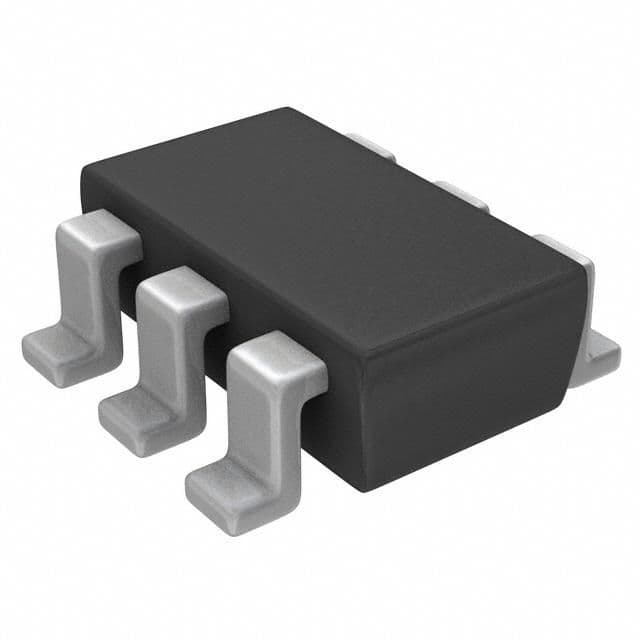

Product Images
