Technical Specifications
Onsemi FDC796N_F077 technical specifications.
General
| Continuous Drain Current (ID) | 12.5A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 9mR |
| Drain to Source Voltage (Vdss) | 30V |
| Drain-source On Resistance-Max | 9MR |
| Fall Time | 13ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 1.444nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.1W |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2W |
| Rds On Max | 9mR |
| Series | PowerTrench® |
| Turn-Off Delay Time | 26ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDC796N_F077 Datasheet
Download the complete datasheet for Onsemi FDC796N_F077 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

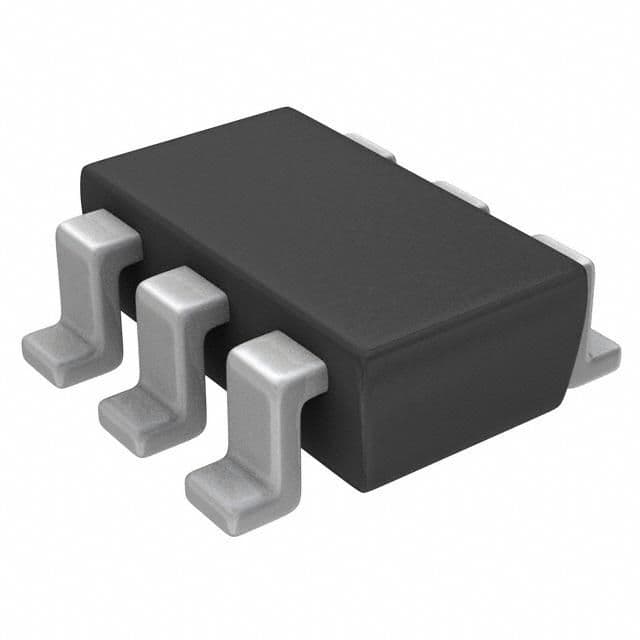

Product Images
