Dual P-Channel Junction Field-Effect Transistor (JFET) designed for digital applications. Features a maximum drain-source voltage of -20V and a continuous drain current of 500mA. Offers a low drain-source on-resistance of 780mΩ. This surface-mount component is packaged in SC, with dimensions of 2mm (length) x 1.25mm (width) x 1mm (height). Operates within a temperature range of -55°C to 150°C and boasts a power dissipation of 300mW.
PackageSC
Current Rating-500mA
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Onsemi FDG6318P technical specifications.
General
Package/Case
SC
Continuous Drain Current (ID)
500mA
Current Rating
-500mA
Drain to Source Voltage (Vdss)
20V
Drain-source On Resistance-Max
780MR
Element Configuration
Dual
Fall Time
1ns
FET Type
2 N-Channel
Gate to Source Voltage (Vgs)
12V
Height
1mm
Input Capacitance
83pF
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Mount
Surface Mount
Number of Elements
2
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
300mW
Rds On Max
780mR
RoHS Compliant
Yes
Series
PowerTrench®
Turn-Off Delay Time
13ns
Turn-On Delay Time
6ns
DC Rated Voltage
-20V
Weight
0.028g
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FDG6318P Datasheet
Download the complete datasheet for Onsemi FDG6318P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

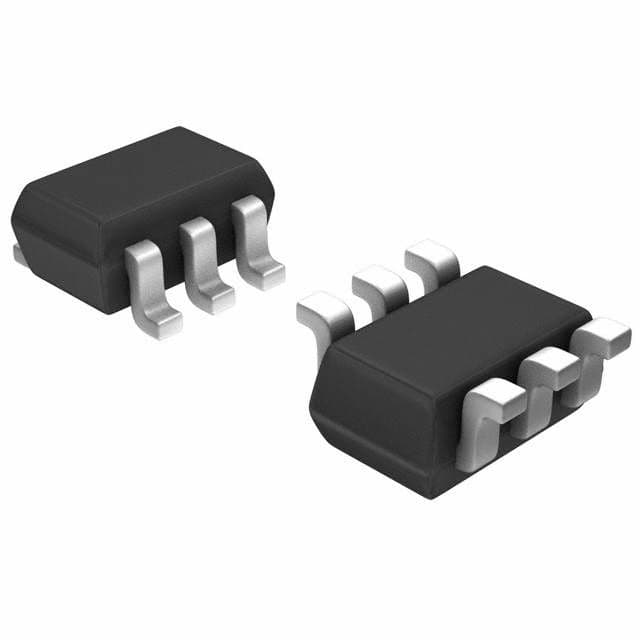

Product Images
