N-Channel MOSFET, 30V Vdss, 0.6mR Rds On, 47A Continuous Drain Current. Features 1.9V threshold voltage, 20ns fall time, and 29ns turn-on delay. Operates from -55°C to 150°C with a maximum power dissipation of 125W. Surface mount package, 5mm length, 4.85mm width, 1.04mm height, supplied on 3000-piece tape and reel. RoHS compliant.
MountingSurface Mount
PolarityN-CHANNEL
Power3.3W
Quick Jump:
Technical Specifications
Onsemi FDMS7650DC technical specifications.
General
Continuous Drain Current (ID)
47A
Drain to Source Breakdown Voltage
30V
Drain to Source Resistance
0.6mR
Drain to Source Voltage (Vdss)
30V
Element Configuration
Single
Fall Time
20ns
Gate to Source Voltage (Vgs)
20V
Height
1.04mm
Input Capacitance
14.765nF
Length
5mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
125W
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
3.3W
Radiation Hardening
No
Rds On Max
0.99mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Dual Cool™, PowerTrench®
Threshold Voltage
1.9V
Turn-Off Delay Time
81ns
Turn-On Delay Time
29ns
Weight
0.09g
Width
4.85mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FDMS7650DC Datasheet
Download the complete datasheet for Onsemi FDMS7650DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

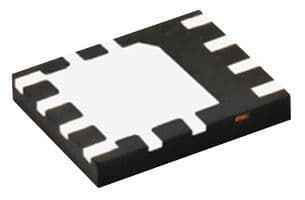

Product Images
