Dual N-Channel MOSFET featuring 20V drain-source breakdown voltage and 7.5A continuous drain current. Offers low 18mΩ maximum drain-source on-resistance at a nominal Vgs of 800mV. Designed for surface mount applications in an SOIC package, this component boasts a 2W power dissipation and operates across a wide temperature range of -55°C to 150°C. Includes fast switching characteristics with turn-on delay of 13ns and fall time of 23ns.
PackageSOIC
Current Rating7.5A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi FDS6890A technical specifications.
General
Package/Case
SOIC
Continuous Drain Current (ID)
7.5A
Current Rating
7.5A
Drain to Source Breakdown Voltage
20V
Drain to Source Resistance
13mR
Drain to Source Voltage (Vdss)
20V
Drain-source On Resistance-Max
180mR
Dual Supply Voltage
20V
Element Configuration
Dual
Fall Time
23ns
FET Type
2 N-Channel
Gate to Source Voltage (Vgs)
8V
Height
1.5mm
Input Capacitance
2.13nF
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Nominal Vgs
800mV
Number of Elements
2
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
2W
Radiation Hardening
No
Rds On Max
18mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerTrench®
Termination
SMD/SMT
Threshold Voltage
800mV
Turn-Off Delay Time
65ns
Turn-On Delay Time
13ns
DC Rated Voltage
20V
Weight
0.187g
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FDS6890A Datasheet
Download the complete datasheet for Onsemi FDS6890A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

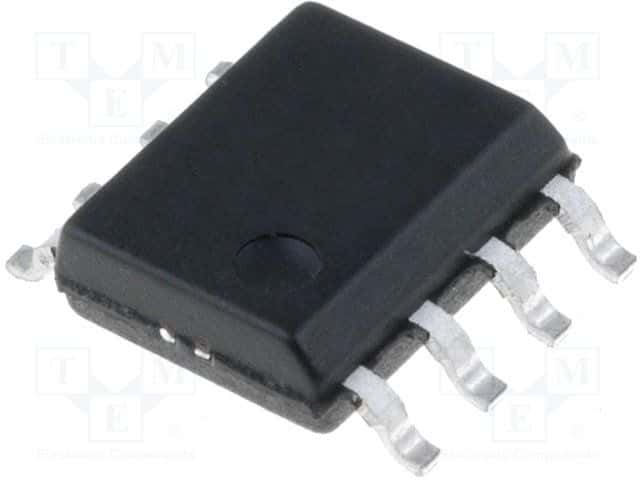

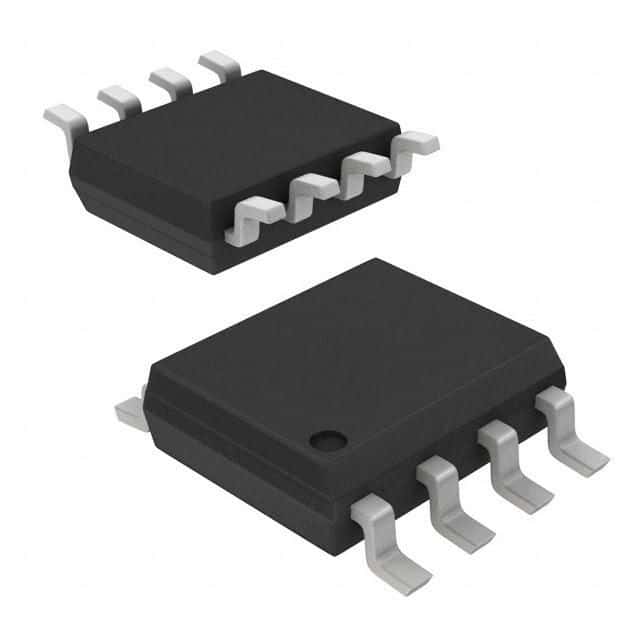

Product Images
