FGA90N30DTU

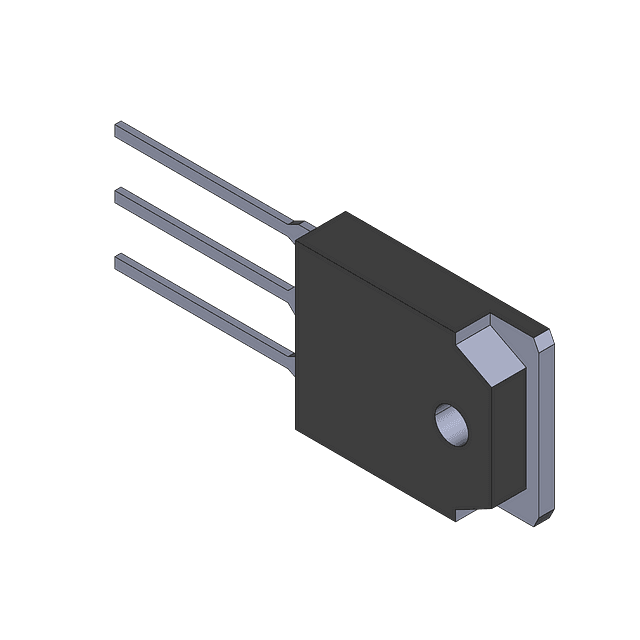

FAIRCHILD SEMICONDUCTOR FGA90N30DTU IGBT Single Transistor, 90 A, 1.4 V, 219 W, 300 V, TO-3P, 3 Pins

Current Rating10A

MountingThrough Hole

Power219W

Quick Jump:

Onsemi FGA90N30DTU technical specifications.

Collector Emitter Breakdown Voltage	300V
Collector Emitter Saturation Voltage	1.9V
Collector Emitter Voltage (VCEO)	300V
Collector-emitter Voltage-Max	1.4V
Current Rating	10A
Input Type	STANDARD
Lead Free	Lead Free
Max Collector Current	90A
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	219W
Mount	Through Hole
Package Quantity	30
Packaging	Rail/Tube
Power Dissipation	219W
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Recovery Time	21ns
RoHS Compliant	Yes
DC Rated Voltage	300V
