The FLZ15VA is a surface mount zener diode with a maximum operating temperature range of -65°C to 175°C. It has a maximum power dissipation of 500mW and a maximum reverse current of 133nA. The diode is RoHS compliant and lead free. It is available in tape and reel packaging with a package quantity of one.
Voltage Rating13.8V
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Onsemi FLZ15VA technical specifications.
General
| Impedance | 13.3R |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 133nA |
| Max Reverse Leakage Current | 133nA |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Tolerance | 3% |
| DC Rated Voltage | 15V |
| Voltage Tolerance | 2% |
| Weight | 0.05184g |
| Working Voltage | 13.8V |
| Zener Current | 10mA |
| Zener Voltage | 13.79V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi FLZ15VA Datasheet
Download the complete datasheet for Onsemi FLZ15VA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

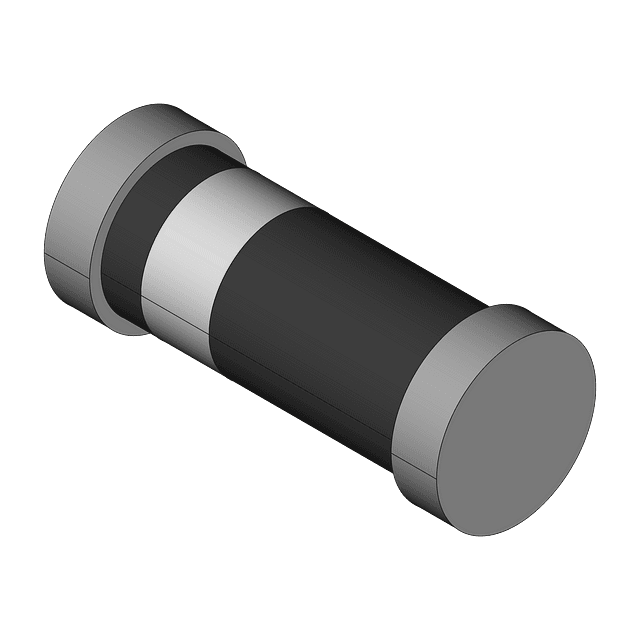

Product Images
