Dual NPN bipolar junction transistor featuring a 40V collector-emitter breakdown voltage and 200mA maximum collector current. This general-purpose transistor operates with a 250MHz transition frequency and a minimum hFE of 100. Packaged in a SOT-23 surface mount case, it offers a maximum power dissipation of 700mW and operates across a temperature range of -55°C to 150°C. The component is RoHS compliant and supplied in a 3000-piece tape and reel.
Frequency250MHz
PackageSOT-23
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FMB3904 technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Collector-emitter Voltage-Max | 300mV |
| Current Rating | 200mA |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 250MHz |
| Gain Bandwidth Product | 250MHz |
| Height | 1mm |
| hFE Min | 100 |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 200mA |
| Max Frequency | 250MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 700mW |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 700mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| DC Rated Voltage | 40V |
| Weight | 0.036g |
| Width | 1.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FMB3904 Datasheet
Download the complete datasheet for Onsemi FMB3904 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

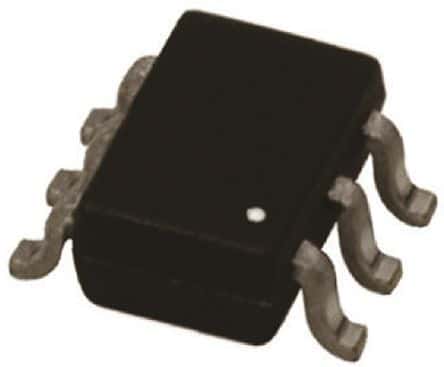

Product Images
