PackageModule
Voltage600V
Current12A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi FPDB20PH60 technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
600V
Current
12A
Height
5.5mm
Lead Free
Lead Free
Length
44mm
Max Operating Temperature
125°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Supply Voltage
20V
Output Current
5mA
Output Voltage
300mV
Package Quantity
10
Packaging
Rail/Tube
Power Dissipation
62.5W
RoHS Compliant
Yes
Supply Current
26mA
Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Onsemi FPDB20PH60 Datasheet
Download the complete datasheet for Onsemi FPDB20PH60 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

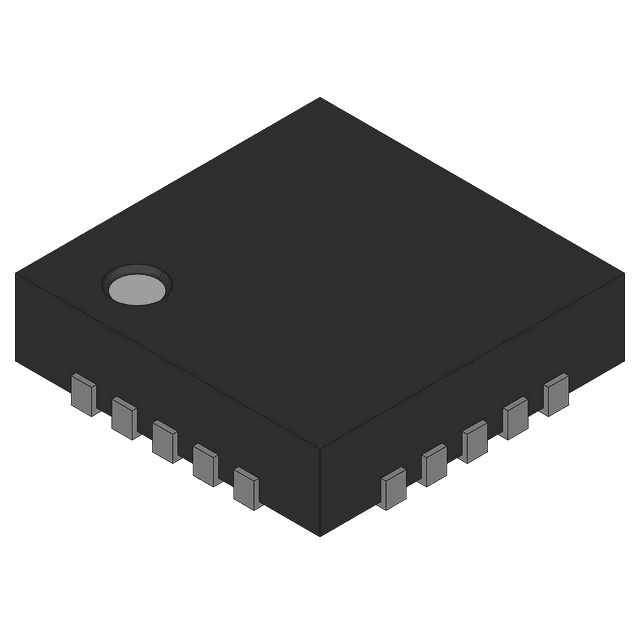

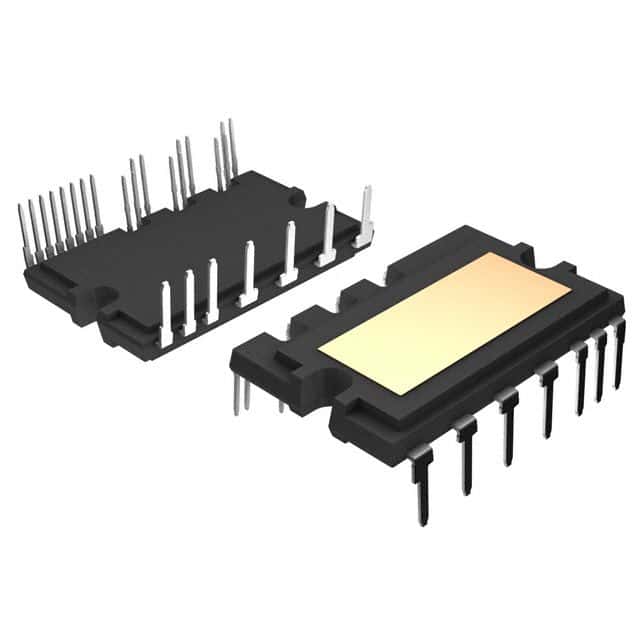

Product Images
