Current Rating13.5A
MountingThrough Hole
PolarityN-CHANNEL
Power218W
Quick Jump:
Technical Specifications
Onsemi FQA13N50C technical specifications.
General
Continuous Drain Current (ID)
13.5A
Current Rating
13.5A
Drain to Source Breakdown Voltage
500V
Drain to Source Resistance
480mR
Drain to Source Voltage (Vdss)
500V
Fall Time
100ns
Gate to Source Voltage (Vgs)
30V
Input Capacitance
2.055nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
218W
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
218W
Rds On Max
480mR
RoHS Compliant
Yes
Series
QFET®
Turn-Off Delay Time
130ns
DC Rated Voltage
500V
Compliance
RoHS
Compliant
Datasheet
Onsemi FQA13N50C Datasheet
Download the complete datasheet for Onsemi FQA13N50C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

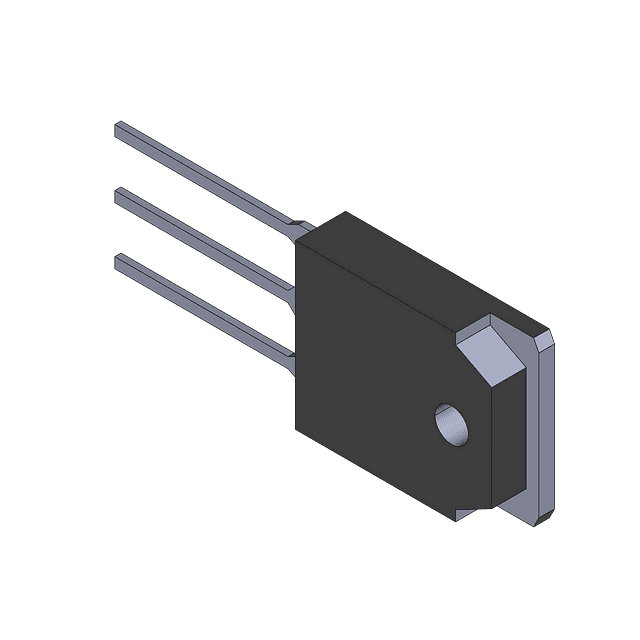

Product Images
