Current Rating7A
MountingThrough Hole
PolarityN-CHANNEL
Power198W
Quick Jump:
Technical Specifications
Onsemi FQA7N80C technical specifications.
General
Continuous Drain Current (ID)
7A
Current Rating
7A
Drain to Source Breakdown Voltage
800V
Drain to Source Resistance
1.9R
Drain to Source Voltage (Vdss)
800V
Fall Time
60ns
Gate to Source Voltage (Vgs)
30V
Input Capacitance
1.68nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
198W
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
198W
Rds On Max
1.9R
RoHS Compliant
Yes
Series
QFET®
Turn-Off Delay Time
50ns
DC Rated Voltage
800V
Compliance
RoHS
Compliant
Datasheet
Onsemi FQA7N80C Datasheet
Download the complete datasheet for Onsemi FQA7N80C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

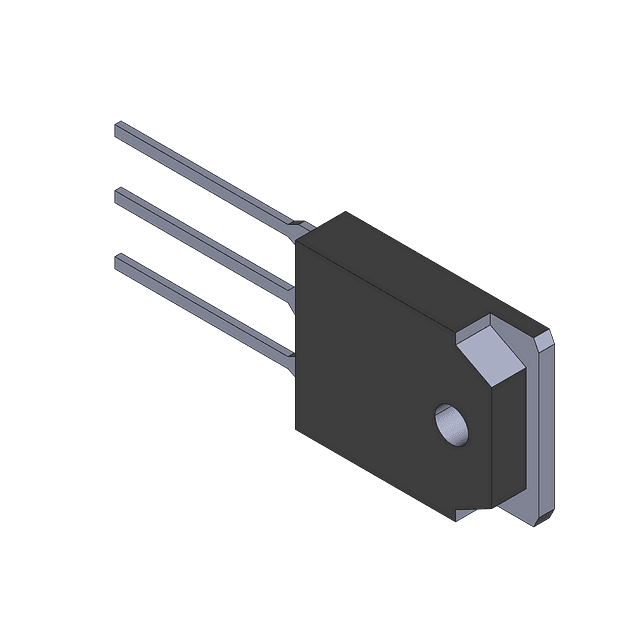

Product Images
