PackageTO-220-3
Current Rating16.7A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi FQPF28N15 technical specifications.
General
Package/Case
TO-220-3
Continuous Drain Current (ID)
16.7A
Current Rating
16.7A
Drain to Source Breakdown Voltage
150V
Drain to Source Resistance
90mR
Drain to Source Voltage (Vdss)
150V
Fall Time
115ns
Gate to Source Voltage (Vgs)
25V
Input Capacitance
1.6nF
Lead Free
Lead Free
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
60W
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
60W
Rds On Max
90mR
RoHS Compliant
Yes
Series
QFET®
Turn-Off Delay Time
100ns
DC Rated Voltage
150V
Compliance
RoHS
Compliant
Datasheet
Onsemi FQPF28N15 Datasheet
Download the complete datasheet for Onsemi FQPF28N15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

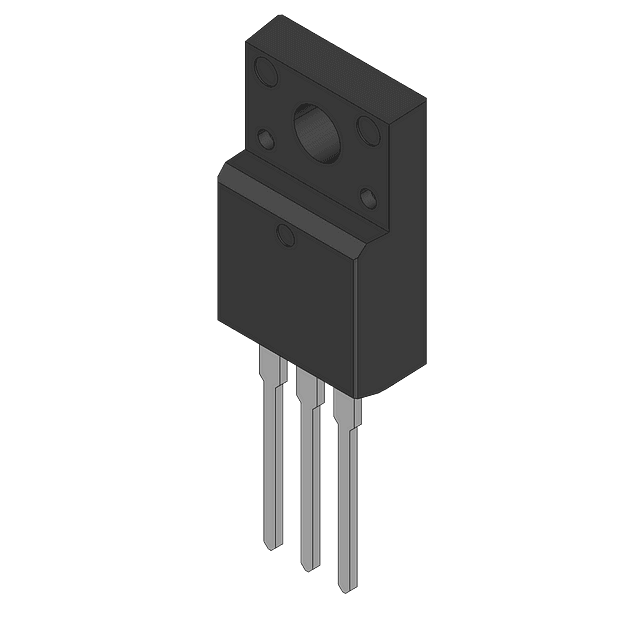

Product Images
