ONSEMI

FQPF30N06L

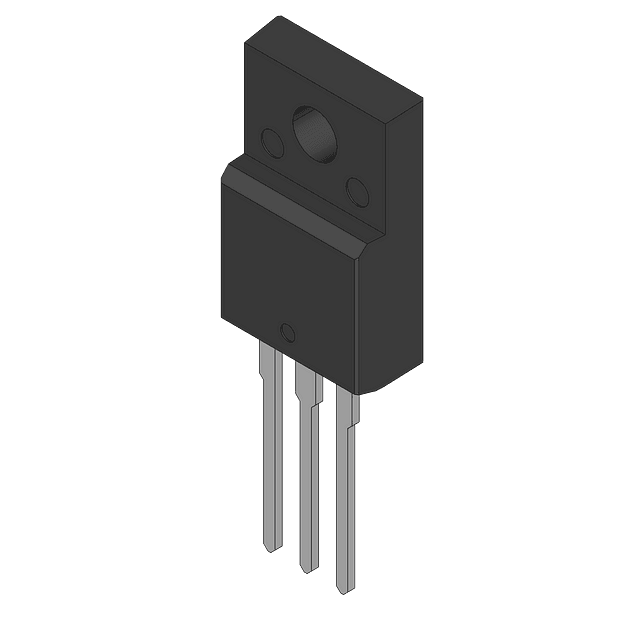

60V N-Channel Logic Level Power MOSFET, 22.5A, 35mR, TO-220F

Onsemi

FQPF30N06L

Name: FQPF30N06L Onsemi
Brand: Onsemi
SKU: FQPF30N06L

60V N-Channel Logic Level Power MOSFET, 22.5A, 35mR, TO-220F

N-Channel Power MOSFET, Logic Level, 60V Drain-Source Breakdown Voltage, 22.5A Continuous Drain Current, 35mΩ Max Drain-Source On-Resistance. Features a TO-220F package for through-hole mounting, 38W max power dissipation, and operates from -55°C to 175°C. Includes fast switching characteristics with 15ns turn-on delay and 60ns turn-off delay. RoHS compliant and lead-free.

PackageTO-220-3

Current Rating22.5A

MountingThrough Hole

PolarityN-CHANNEL

Quick Jump:

Technical Specifications

Onsemi FQPF30N06L technical specifications.

General

Package/Case	TO-220-3
Continuous Drain Current (ID)	22.5A
Current Rating	22.5A
Drain to Source Breakdown Voltage	60V
Drain to Source Resistance	35mR
Drain to Source Voltage (Vdss)	60V
Element Configuration	Single
Fall Time	110ns
Gate to Source Voltage (Vgs)	20V
Height	16.07mm
Input Capacitance	1.04nF
Lead Free	Lead Free
Length	10.36mm
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Max Power Dissipation	38W
Mount	Through Hole
Package Quantity	50
Packaging	Rail/Tube
Polarity	N-CHANNEL
Power Dissipation	38W
Radiation Hardening	No
Rds On Max	35mR
RoHS Compliant	Yes
Series	QFET®
Turn-Off Delay Time	60ns
Turn-On Delay Time	15ns
DC Rated Voltage	60V
Weight	2.27g
Width	4.9mm
