N-Channel Power MOSFET, Logic Level, QFET® series, featuring 100V drain-source breakdown voltage and 10A continuous drain current. This component offers a low drain-source on-resistance of 180mΩ at a 10V gate-source voltage. Designed for through-hole mounting in a TO-251-3 (IPAK) package, it operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 2.5W. Key switching characteristics include a 7.5ns turn-on delay and 22ns turn-off delay.
PackageTO-251-3
Current Rating10A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi FQU13N10LTU technical specifications.
General
Package/Case
TO-251-3
Continuous Drain Current (ID)
10A
Current Rating
10A
Drain to Source Breakdown Voltage
100V
Drain to Source Resistance
180mR
Drain to Source Voltage (Vdss)
100V
Drain-source On Resistance-Max
180MR
Element Configuration
Single
Fall Time
72ns
Gate to Source Voltage (Vgs)
20V
Height
6.1mm
Input Capacitance
520pF
Lead Free
Lead Free
Length
6.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.5W
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
70
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
2.5W
Radiation Hardening
No
Rds On Max
180mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
QFET®
Threshold Voltage
2V
Turn-Off Delay Time
22ns
Turn-On Delay Time
7.5ns
DC Rated Voltage
100V
Weight
0.34308g
Width
2.3mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FQU13N10LTU Datasheet
Download the complete datasheet for Onsemi FQU13N10LTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

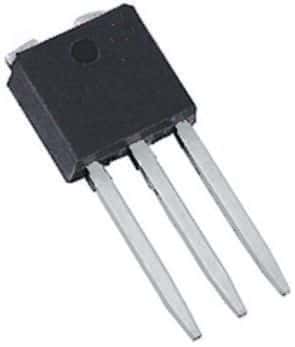

Product Images
