The FR015L3EZ is a unidirectional diode with a clamping voltage of 15V and a maximum operating temperature of 125°C. It is designed for surface mount applications and is available in a tape and reel packaging. The diode has a peak pulse power rating of 2.4W and is compliant with RoHS regulations. It operates within a temperature range of -55°C to 125°C and has a maximum current rating of 8A.
Voltage1.3V
Current8A
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi FR015L3EZ technical specifications.
General
| Clamping Voltage | 15V |
| Current | 8A |
| Height | 0.725mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 8V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 2.4W |
| Polarity | Unidirectional |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage | 1.3V |
| Weight | 0.03g |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FR015L3EZ Datasheet
Download the complete datasheet for Onsemi FR015L3EZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

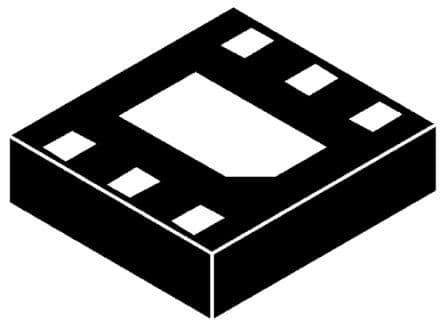

Product Images
