The FSA9485UCX is a surface mount fault protection IC with I2C and USB interfaces, operating over a temperature range of -40°C to 85°C. It provides over current and over voltage protection. The IC is available in a VFBGA package, with a package quantity of 3000 units per reel. The FSA9485UCX is RoHS compliant and suitable for consumer applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FSA9485UCX technical specifications.
General
| Fault Protection | Over Current, Over Voltage |
| Height | 0.378mm |
| Interface | I2C, USB |
| Length | 2.1mm |
| Max Input Voltage | 4.4V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Weight | 0.00462g |
| Width | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FSA9485UCX Datasheet
Download the complete datasheet for Onsemi FSA9485UCX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

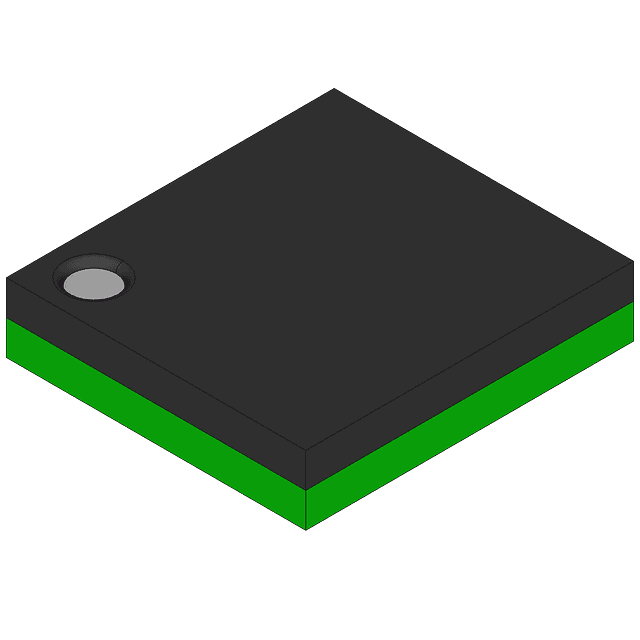

Product Images
