The FSDH0265RL is a DC/DC controller from Onsemi with a maximum operating temperature of 85°C and a maximum power dissipation of 1.56W. It is designed for surface mount applications and is RoHS compliant. The device has a maximum output current of 1.3A and a quiescent current of 3mA. The FSDH0265RL is packaged in a 50-unit rail/tube package with a lead-free lead. It operates within a temperature range of -25°C to 85°C.
PackageLSOP
Current3mA
MountingSurface Mount
Power1.56W
Quick Jump:
Technical Specifications
Onsemi FSDH0265RL technical specifications.
General
| Package/Case | LSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 27W |
| Max Supply Current | 3mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1.3A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.56W |
| Quiescent Current | 3mA |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FSDH0265RL Datasheet
Download the complete datasheet for Onsemi FSDH0265RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

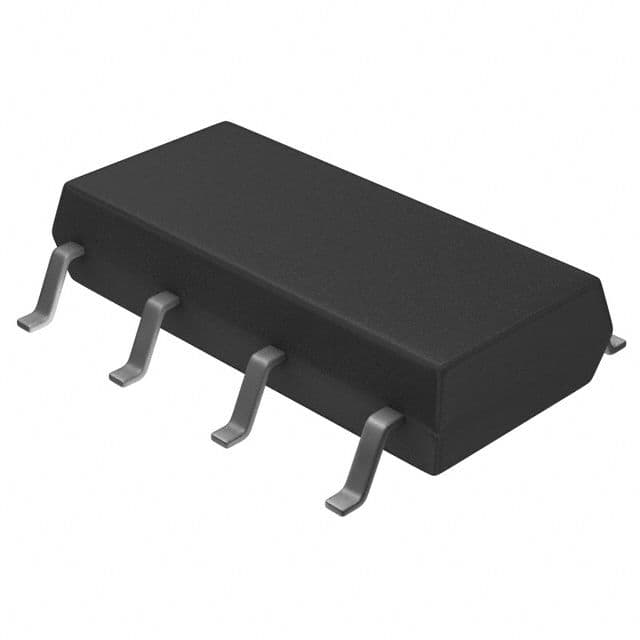

Product Images
