8-bit bidirectional voltage translator IC, featuring CMOS technology and 3-state output. Supports data rates up to 140Mbps and operates bidirectionally with a maximum frequency of 70MHz. This surface mount component offers a wide operating supply voltage range from 1.1V to 3.6V, with a typical operating voltage of 3.3V. Designed for 8 channels, it provides non-inverting logic with a propagation delay of 4ns. Packaged in tape and reel, this lead-free, RoHS compliant device operates from -40°C to 85°C.
Frequency70MHz
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi FXLA108BQX technical specifications.
General
Data Rate
140Mbps
Direction
Bidirectional
Frequency
70MHz
Height
0.75mm
High Level Output Current
-4uA
Lead Free
Lead Free
Length
4.5mm
Logic Function
Transceiver, Translator
Low Level Output Current
4uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10uA
Max Supply Voltage
3.6V
Min Supply Voltage
1.1V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Inputs
8
Number of Outputs
8
Operating Frequency-Max
50MHz
Operating Supply Voltage
3.3V
Output Type
3-STATE, Voltage
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4ns
Quiescent Current
10uA
RoHS Compliant
Yes
Technology
CMOS
Turn-On Delay Time
6.9ns
Weight
0.123g
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FXLA108BQX Datasheet
Download the complete datasheet for Onsemi FXLA108BQX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

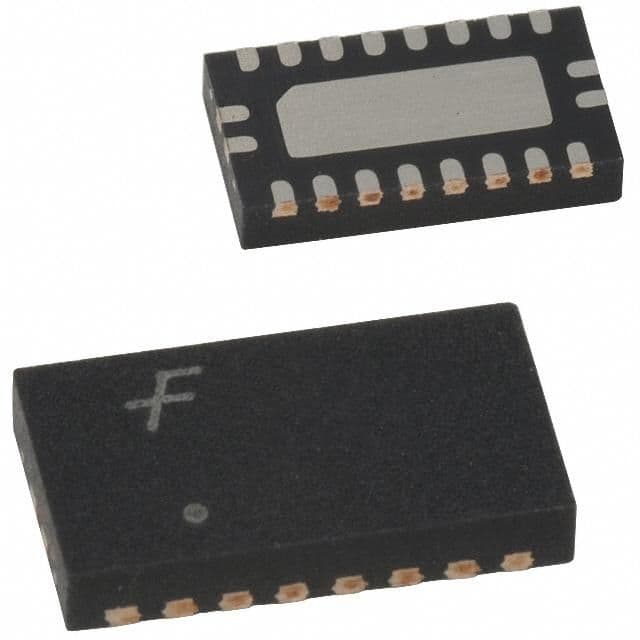

Product Images
