General purpose rectifier diode with a 1A average rectified current and 50V repetitive reverse voltage. Features a 1A forward current, 30A maximum forward surge current, and 2µs reverse recovery time. This single element diode is housed in a DO-214AC surface mount package with dimensions of 4.75mm length, 2.95mm width, and 2.2mm height. Operating temperature range is -65°C to 175°C, with a power dissipation of 1.8W. RoHS compliant and lead-free.
PackageDO-214AC
Capacitance15pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi GF1A technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 15pF |
| Package/Case | DO-214AC |
| Current Rating | 1A |
| Element Configuration | Single |
| Forward Current | 1A |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 4.75mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 50V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 50V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Power Dissipation | 1.8W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 2us |
| Reverse Voltage | 50V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 50V |
| Weight | 0.106g |
| Width | 2.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi GF1A Datasheet
Download the complete datasheet for Onsemi GF1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

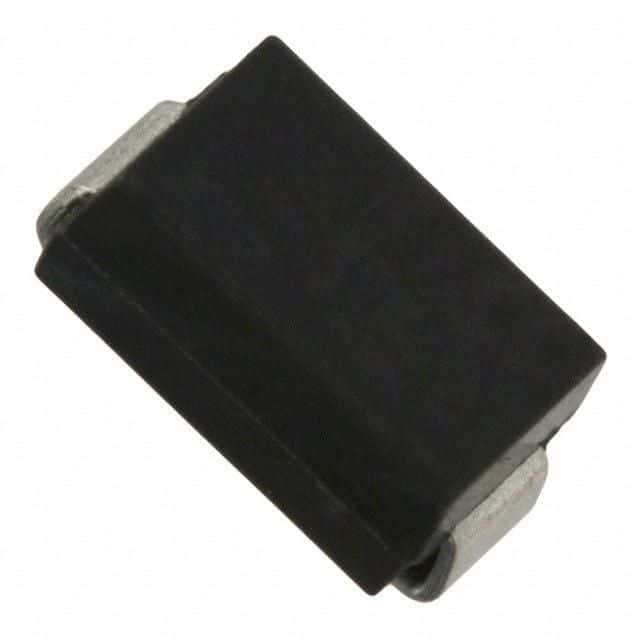

Product Images
