Technical Specifications
Onsemi HUF75344A3 technical specifications.
General
| Continuous Drain Current (ID) | 75A |
| Drain to Source Breakdown Voltage | 55V |
| Drain to Source Resistance | 8mR |
| Drain to Source Voltage (Vdss) | 55V |
| Fall Time | 20ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 4.855nF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 288.5W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 288.5W |
| Rds On Max | 8mR |
| RoHS Compliant | Yes |
| Series | UltraFET™ |
| Turn-Off Delay Time | 61ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HUF75344A3 Datasheet
Download the complete datasheet for Onsemi HUF75344A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

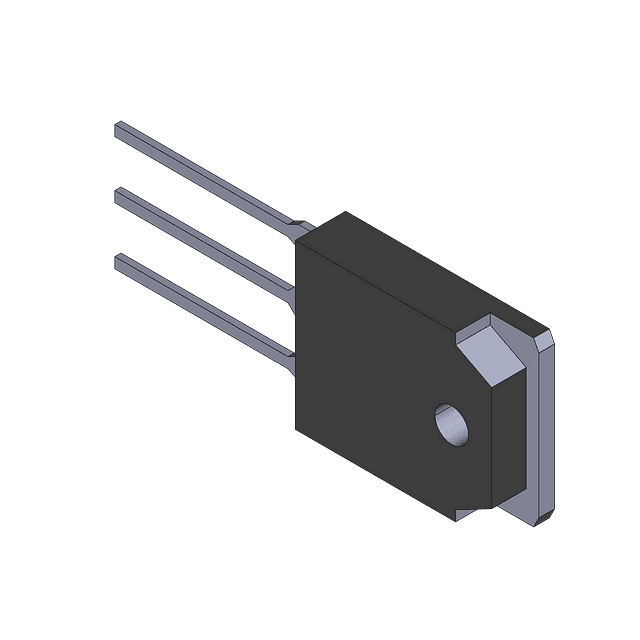

Product Images
