PackageTO-220-4
Current7mA
MountingThrough Hole
Power40W
Quick Jump:
Technical Specifications
Onsemi KA5H0165RTU technical specifications.
General
Package/Case
TO-220-4
Min Breakdown Voltage
650V
Max Duty Cycle
72%
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
40W
Max Supply Current
12mA
Max Supply Voltage
30V
Min Supply Voltage
8.2V
Mount
Through Hole
Number of Channels
1
Number of Outputs
1
Output Current
3A
Output Voltage
5.2V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
40W
Radiation Hardening
No
RoHS Compliant
Yes
Series
FPS™
Supply Current
7mA
Weight
2.829g
Compliance
RoHS
Compliant
Datasheet
Onsemi KA5H0165RTU Datasheet
Download the complete datasheet for Onsemi KA5H0165RTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

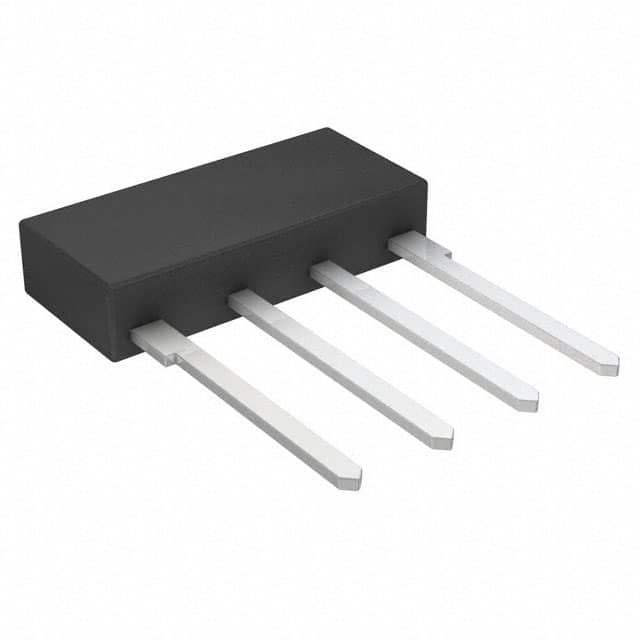

Product Images
