Quad comparator IC, featuring four independent channels with TTL output. Operates from a single supply voltage range of 3V to 36V, or dual supplies from 1.5V to 18V. Offers a wide operating temperature range of -40°C to +125°C. Key specifications include 250nA input bias current, 7mV input offset voltage, and 16mA output current per channel. Packaged in a 14-pin SOIC, this component is RoHS compliant and supplied on a 2500-piece tape and reel.
PackageSOIC
Current2mA
Power1W
Quick Jump:
Technical Specifications
Onsemi LM2901VDR2G technical specifications.
General
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| Height | 1.5mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Length | 8.75mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1.5V |
| Max Input Current | 250nA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Current | 2mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 3V |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Current | 16mA |
| Output Current per Channel | 16mA |
| Output Type | TTL |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 1W |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1.3us |
| RoHS Compliant | Yes |
| Series | LM2901 |
| Supply Current | 2mA |
| Technology | BIPOLAR |
| Type | General Purpose |
| Voltage Gain | 100dB |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM2901VDR2G Datasheet
Download the complete datasheet for Onsemi LM2901VDR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

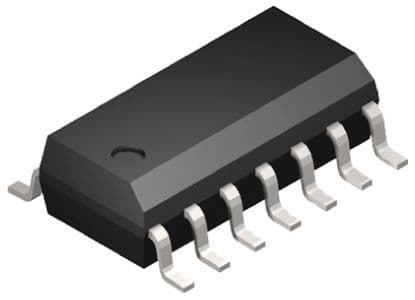

Product Images
