Quad operational amplifier featuring a 1MHz gain bandwidth product and 0.6V/µs slew rate. This general-purpose op-amp offers a 100dB voltage gain and 50dB common mode rejection ratio, suitable for single or dual supply operation from 3V to 32V. The SOIC-14 package provides four independent amplifier circuits, each capable of 40mA output current. Operating current is 1.4mA, with a wide temperature range of -40°C to 105°C.
PackageSOIC
Current1.2mA
Quick Jump:
Technical Specifications
Onsemi LM2902DG technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Channel Separation
-120dB
Common Mode Rejection Ratio
50dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Halogen Free
Halogen Free
Height
1.5mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Input Offset Voltage-Max
7mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.4mA
Operating Supply Voltage
16V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
55
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
50dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Voltage Gain
100dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi LM2902DG Datasheet
Download the complete datasheet for Onsemi LM2902DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

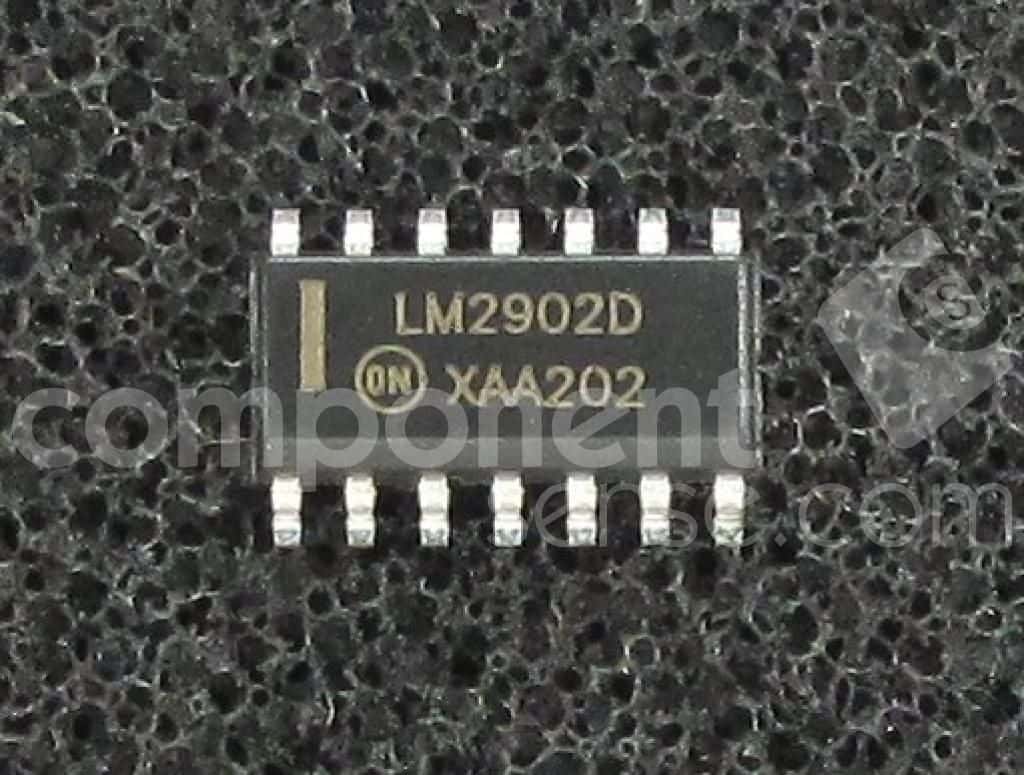

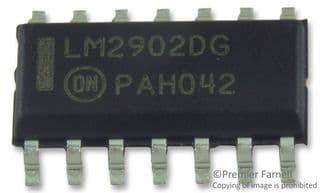

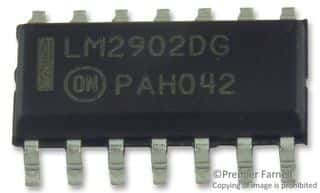

Product Images
