Technical Specifications
Onsemi LM301AD technical specifications.
General
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7.5mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Channels | 1 |
| Operating Supply Voltage | 18V |
| Output Current | 10mA |
| Package Quantity | 98 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Supply Current | 1.8mA |
| Technology | BIPOLAR |
| Voltage Gain | 104.08dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi LM301AD Datasheet
Download the complete datasheet for Onsemi LM301AD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

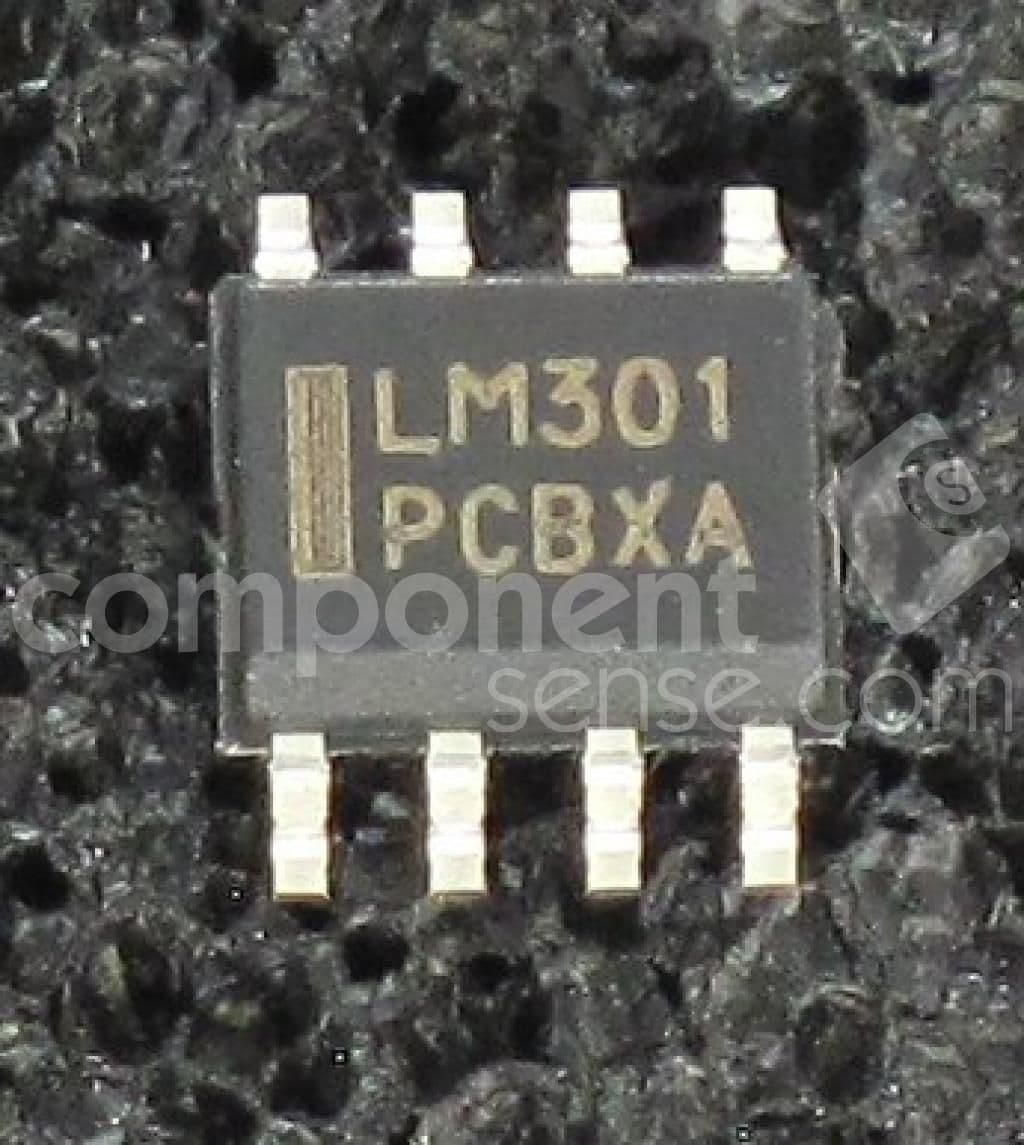

Product Images
