Quad operational amplifier featuring a 1MHz gain bandwidth product and 0.6V/µs slew rate. This general-purpose amplifier offers a wide operating supply voltage range from 3V to 32V, with a typical operating supply current of 1.4mA. The SOIC package provides 4 independent amplifiers, each capable of 40mA output current. It boasts a 65dB common mode rejection ratio and 65dB power supply rejection ratio, with a 250nA input bias current and 3mV maximum input offset voltage.
PackageSOIC
Current1.2mA
Quick Jump:
Technical Specifications
Onsemi LM324DG technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Channel Separation
-120dB
Common Mode Rejection Ratio
65dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Halogen Free
Halogen Free
Height
1.5mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.4mA
Operating Supply Voltage
16V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
55
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Voltage Gain
100dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi LM324DG Datasheet
Download the complete datasheet for Onsemi LM324DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

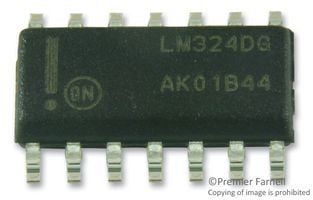

Product Images
