The LV8824QA-NH is a surface mount motor driver IC from Onsemi, operating between -40°C and 105°C. It features a parallel and PWM interface, and is compatible with lead-free assembly processes. The device has a maximum operating voltage of 33V and a maximum output current of 50mA. It is supplied in a VQFN package, available in quantities of 2000 on tape and reel.
PackageVQFN
Current6mA
MountingSurface Mount
Power1.45W
Quick Jump:
Technical Specifications
Onsemi LV8824QA-NH technical specifications.
General
| Package/Case | VQFN |
| Interface | Parallel, PWM |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 33V |
| Output Current | 50mA |
| Output Voltage | 5.4V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.45W |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LV8824QA-NH Datasheet
Download the complete datasheet for Onsemi LV8824QA-NH to view detailed technical specifications.
No datasheet is available for this part.

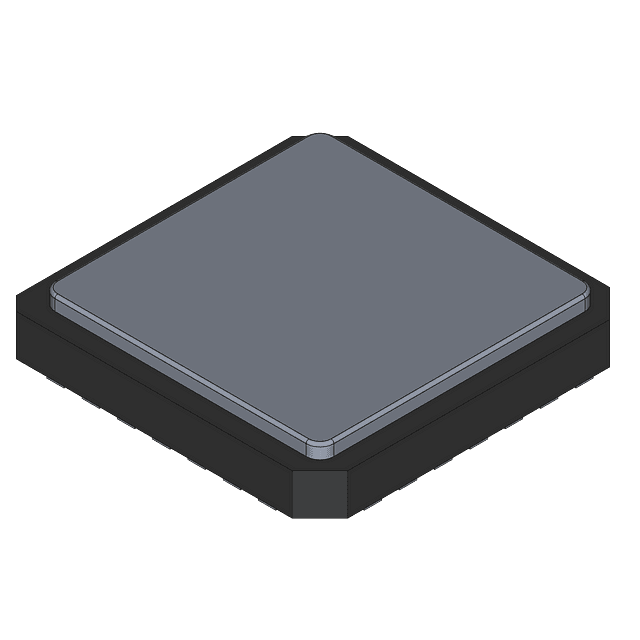

Product Images
