Schottky Power Rectifier, Surface Mount. Features 500mA average rectified current and 20V DC rated voltage. This single element rectifier offers a maximum forward current of 500mA and a peak non-repetitive surge current of 5.5A. Packaged in a compact SOD-123-2 case with dimensions of 2.84mm length, 1.8mm width, and 1.25mm height. Operating temperature range spans from -65°C to 125°C. RoHS and Halogen Free compliant.
PackageSOD-123-2
Current Rating500mA
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MBR0520LT3G technical specifications.
General
| Average Rectified Current | 500mA |
| Package/Case | SOD-123-2 |
| Current Rating | 500mA |
| Element Configuration | Single |
| Forward Current | 500mA |
| Halogen Free | Halogen Free |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2.84mm |
| Max Forward Surge Current (Ifsm) | 5.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 20V |
| Max Reverse Current | 250uA |
| Max Reverse Leakage Current | 250uA |
| Max Reverse Voltage (DC) | 20V |
| Max Surge Current | 5.5A |
| Output Current | 500mA |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 5.5A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 20V |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MBR0520LT3G Datasheet
Download the complete datasheet for Onsemi MBR0520LT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

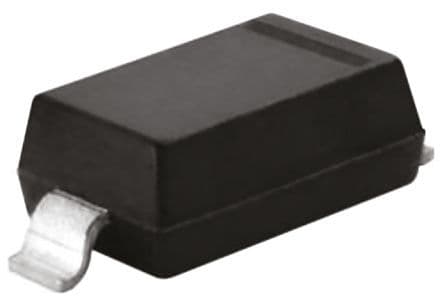

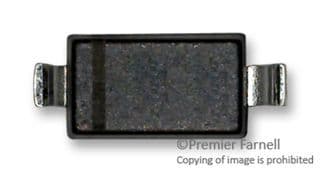

Product Images
