Onsemi
MBR120VLSFT3
1.0 A, 20 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 10000-REEL
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MBR120VLSFT3 technical specifications.
General
Average Rectified Current
1A
Current Rating
1A
Element Configuration
Single
Forward Current
1A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
45A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
20V
Max Reverse Current
600uA
Max Reverse Leakage Current
600uA
Max Reverse Voltage (DC)
20V
Max Surge Current
45A
Output Current
1A
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
45A
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Onsemi MBR120VLSFT3 Datasheet
Download the complete datasheet for Onsemi MBR120VLSFT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

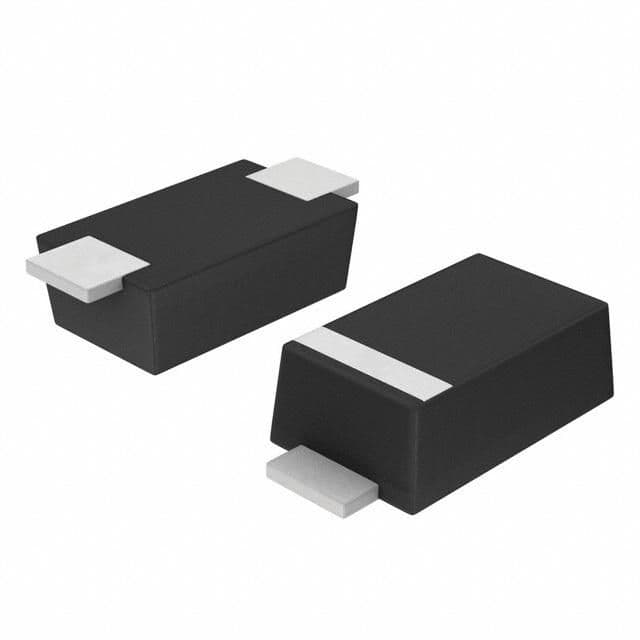

Product Images
