PackageTO-220-2
Current Rating16A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MBR1635 technical specifications.
General
Average Rectified Current
16A
Package/Case
TO-220-2
Current Rating
16A
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
200uA
Max Reverse Voltage (DC)
35V
Max Surge Current
150A
Mount
Through Hole
Output Current
16A
Package Quantity
50
Packaging
Rail/Tube
Polarity
Standard
RoHS Compliant
Yes
DC Rated Voltage
35V
Compliance
RoHS
Not Compliant
Datasheet
Onsemi MBR1635 Datasheet
Download the complete datasheet for Onsemi MBR1635 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

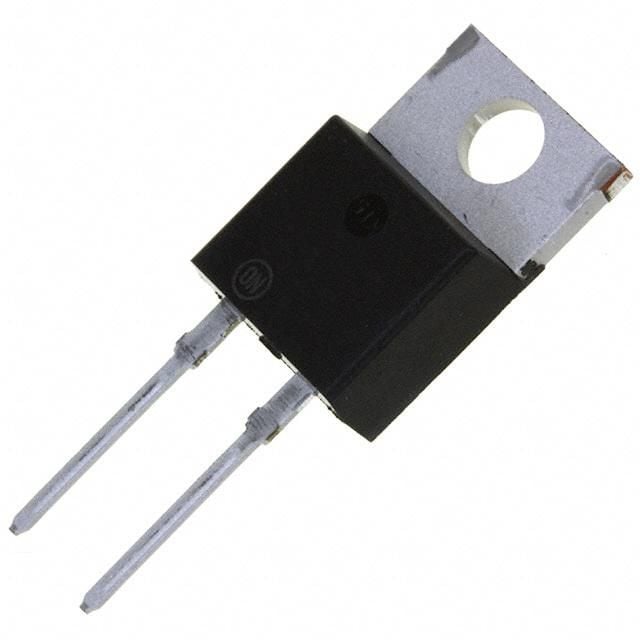

Product Images
