PackageD2PAK
Current Rating10A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MBRB1045 technical specifications.
General
Average Rectified Current
10A
Package/Case
D2PAK
Current Rating
10A
Element Configuration
Single
Lead Free
Contains Lead
Max Forward Surge Current (Ifsm)
150A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
100uA
Max Reverse Voltage (DC)
45V
Max Surge Current
150A
Output Current
10A
Package Quantity
50
Packaging
Rail/Tube
Polarity
Standard
RoHS Compliant
No
Series
SWITCHMODE™
DC Rated Voltage
45V
Compliance
RoHS
Not Compliant
Datasheet
Onsemi MBRB1045 Datasheet
Download the complete datasheet for Onsemi MBRB1045 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

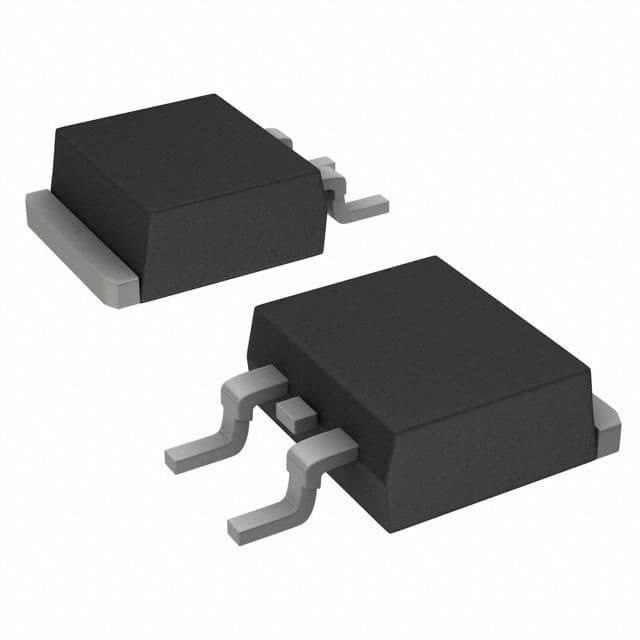

Product Images
